14 VELUX
®
J1
65432132132121
132
+–
2132132132541
LINK FACU
BATTERY
DET.21DET.21
NL
NL
PENL
230V
230V
ERROR-MOTOR 1
ERROR-MOTOR 2
ERROR-SMOKE DET.
ERROR-BREAK GLASS
RAIN SENSOR INPUT
ALARM ACTIVE
ERROR-TEMP. FUSE
MAINTENANCE
BATTERY
PSU2 OK
PSU1 OK
OPERATION
RESET
SETUP
RESET
73˚ C
TEMP. FUSE
TIME
AUTO CLOSE
TIME
OPENNIG
COMFORT
FRONT PANEL
BREAK GLASS POINTRAINRAIN IN COMFORTSMOKERAIN OUT ERRORALARM
FUSE: 25A
MOTOR 2MOTOR 1230V/50Hz
+–
24V
24V
1
ON
23456
321
RAIN

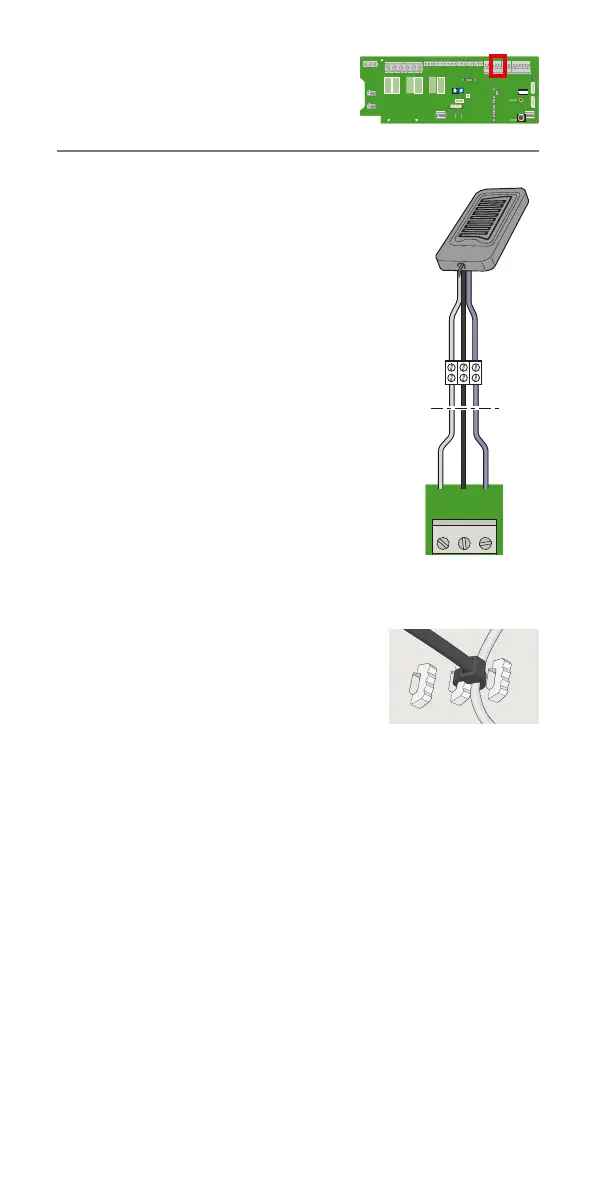

The product can be purchased separately.
Note: When fitting rain sensor KLA 200, use
the instructions supplied with the sensor.
Connection
The rain sensor is connected to the control unit
by means of a 3-core cable with a minimum
cross-section of 0.5 mm
2
. This cable can be up
to 100 m long.
Note: If the rain sensor has been activated, ie
has closed the window due to rain, it will take
at least 2 minutes before the comfort ventila-
tion can be activated again.
When connecting, lead cable through the rub-
ber membrane and fasten with cable tie.
Rain sensor
KLA 200
