Venduro RA SMALL - Electricity Diagram NEW 2018

ENG
49

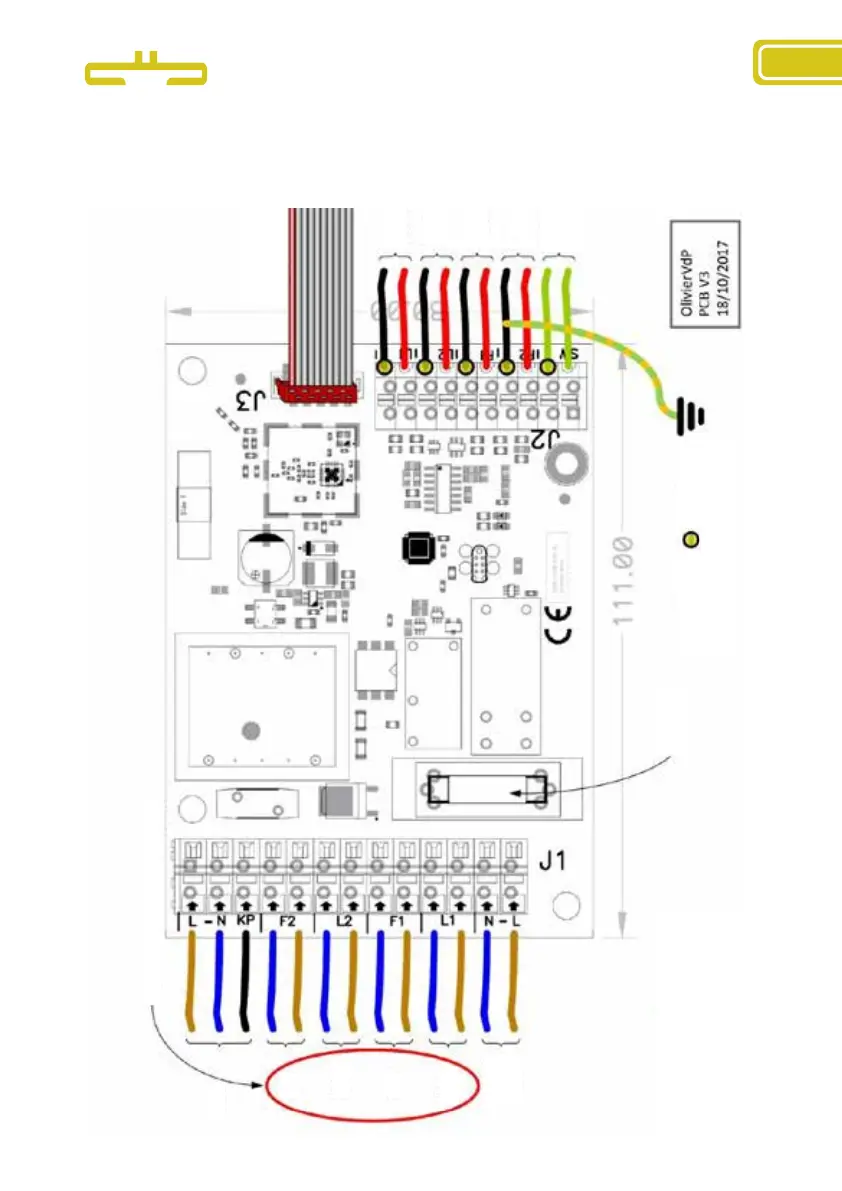

Electricity diagram NEW 2018
May be exchanged at will (in pairs).
One of the indicated connecting clamps on J2 must be connected to the chassis.
Fuse
VALVE
Light Light
Fan
Light Light Fan
Fan
Reed
switch
Power input
Flatcable to touch control board.
Fan
