Care and Cleaning

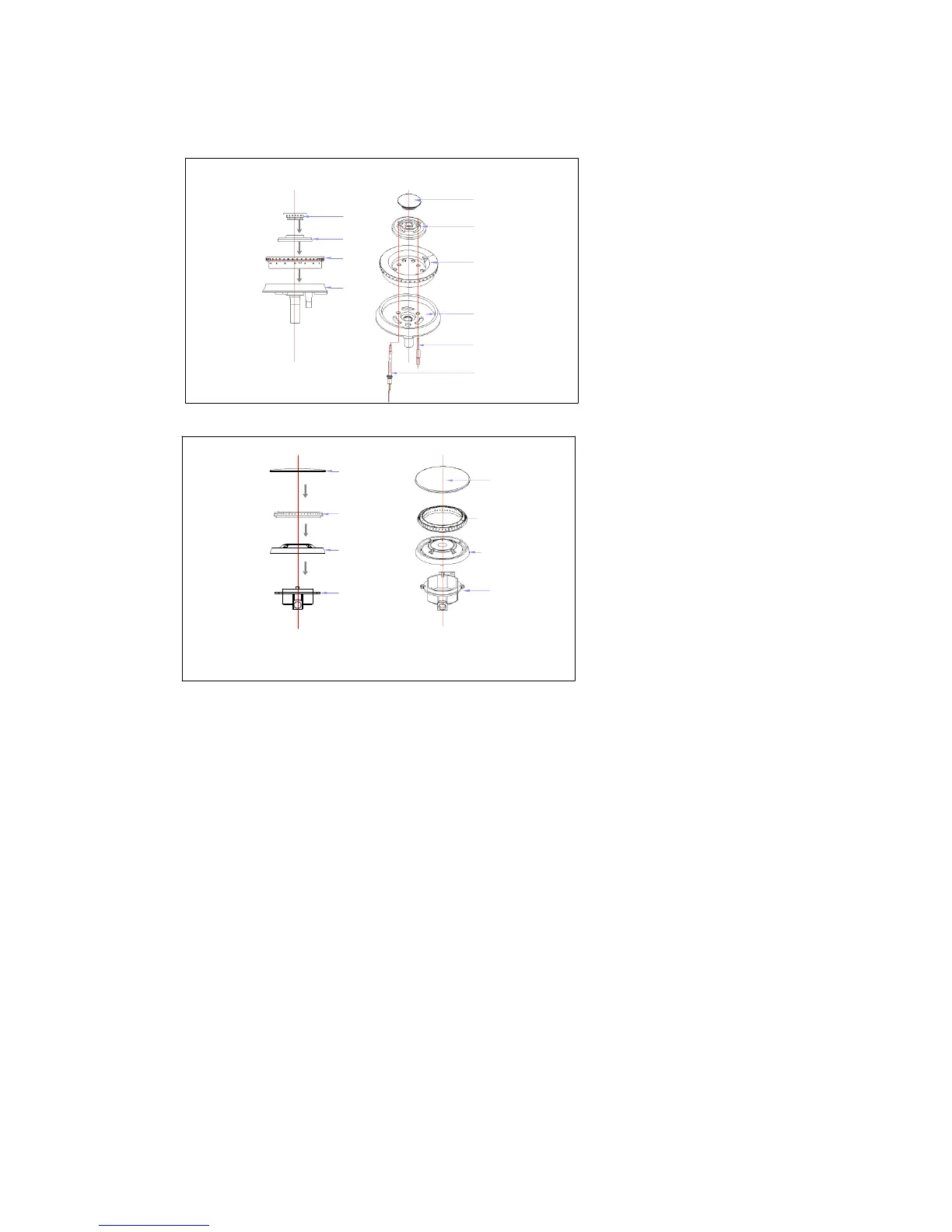

Replacing the burner parts
burner cap
4
Inner burner base
3
2
Outer burner head
1
Outer burner base
Ignitor
Thermocoupte
4
burner cap
3
Outer burner head
2
Outer burner base
1
Burner base cup
Removing and replacing the oven door
Important!
Do not lift the oven door by its handle. Doing so may damage the door.
Make sure the oven and the door are cool before you begin to remove the door.
Before removing the door, make sure there is a large enough clear, protected surface
in the kitchen to rest the door on.
Take care, the oven door is heavy!
When replacing the burners, make sure that the two locating pins on the bottom of the
brass flame spreader are properly aligned with the locating pin holes on the top of the
simmer ring.
Incorrect alignment will produce a potentially dangerous flame and poor burner
performance.
