TECHNICAL MANUAL
11
DESCRIPTION
MOD. MINI DOGE: device conceived for acoustic notice in alarm, evacuation and monitoring
systems – usage in covered locations properly protected against bad weather conditions.
MOD. MINI DOGE L: features as per Mini Doge, with BLUE LED flashing unit (serving both as
optical notice and as system status ON/OFF notice).
MOD. MINI DOGE A: self-supplied device conceived for acoustic notice in alarm, evacuation
and monitoring systems – usage in covered locations properly protected against bad weather
conditions.
MOD. MINI DOGE AL: features as per Mini Doge A, with BLUE LED flashing unit (serving both
as optical notice and as system status ON/OFF notice).

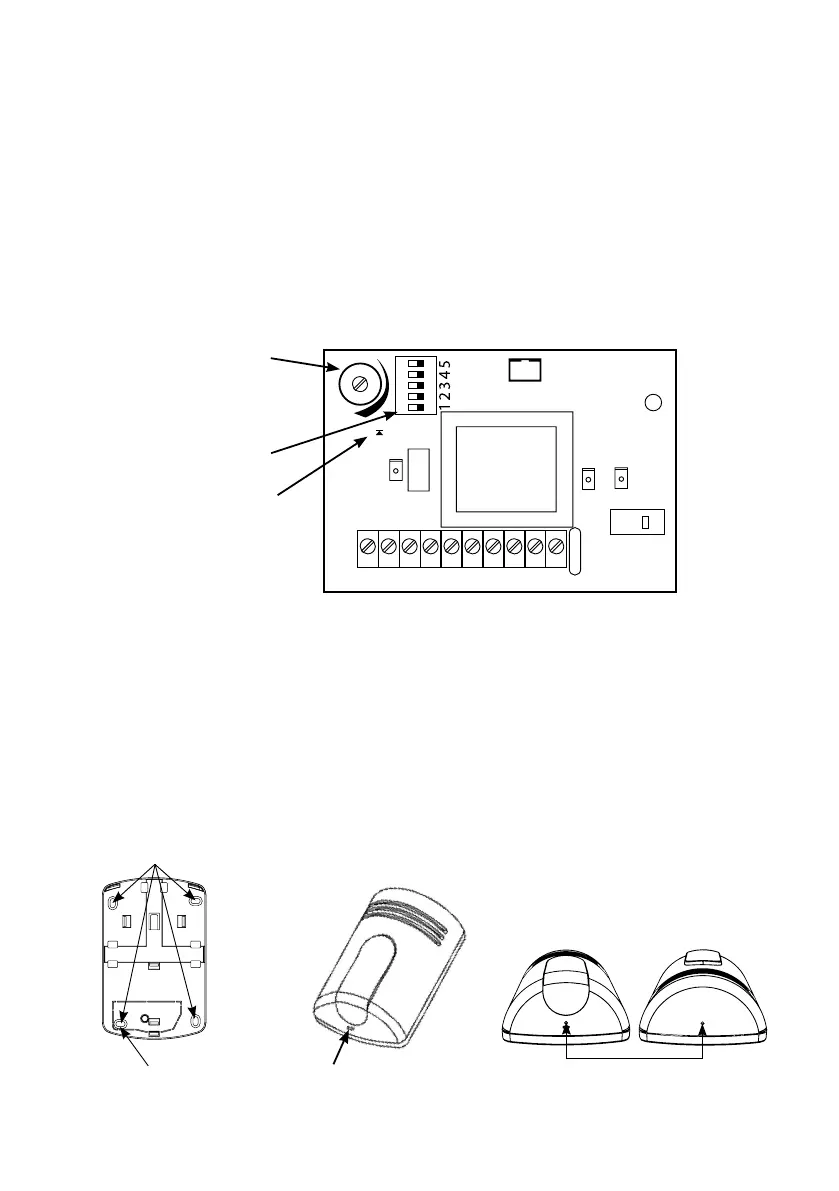

ANOMALY LED
(A-AL MODELS)
VOLUME
DIP-SWITCHES
M1
1
M2
2
M3
3
M4
4
M5
5
M6
6+
M7
7–
M8 M9 M10
OUT
ANM
T
A
M
P
E
R
RT1
DL1
DL3
SW2
DL2
LD1
SW1
J1
+
–
P1
Insert the screwdriver here
to open the sounder
Pict. 2
Pict. 1
Fixing holes
Hole for anti-removal
tamper
Screw hole
MOUNTING:
The sounder must be installed by qualified staff, in indoor locations, keeping into consideration
all related norms and measures and respecting proper distances and installation heights to
the purpose of obtaining the best acoustic and optical notice results from the device.
To open the sounder, unscrew the closing screw, insert a screwdriver in the hole as shown by
the arrow in Pict. 2 and take off the cover. Fix the siren on the wall through the 4 fixing holes
located on the sounder base (see Pict. 1) using 4 5-mm wall plugs.
For the wiring: use a joint in case of installation with external pipes.
