TECHNICAL MANUAL
17
100.6 dB

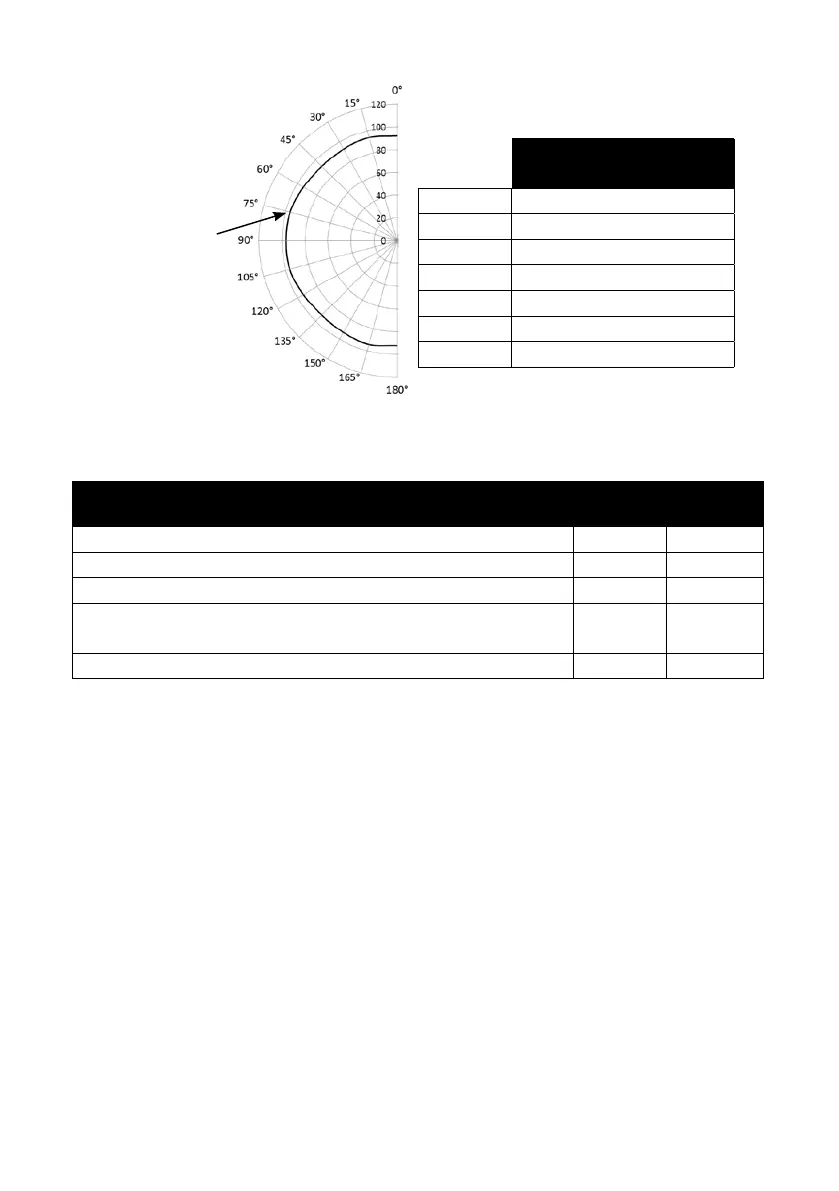

DIAGRAM 2
MINI DOGE A/AL
SOUND 1
Angle dB (A) @ 1 m
15° 97.4
45° 96.8
75° 100.6
105° 100.4
135° 97.6
165° 99.1
ANOMALIES CHART
ANOMALY
LD1 RED
LED
OUT ANM
OUTPUT
No recharge current (recharge Vdc < 10 Vdc) (test every 10 s) 2 FLASHES OPEN
Battery is disconnected (test every 12 hours) 3 FLASHES OPEN
Low voltage battery (battery Vdc < 6.5 Vdc) (test every 10 s) 4 FLASHES OPEN
Battery exhausted (< 6.5 Vdc) – not keeping the charge
(test every 12 hours)
5 FLASHES OPEN
No anomalies OFF 0 Vdc
To reset anomalies to zero, first remove the anomaly cause, then wait 10 seconds and give a
command to one of the input terminals (2, 3, 4, 5).
To rerun the anomaly test, take away the sounder power supply by disconnecting the battery
pack and the recharge terminal.
ATTENTION: give power supply to the sounder using a control panel output with SELV
voltage and limited power.
