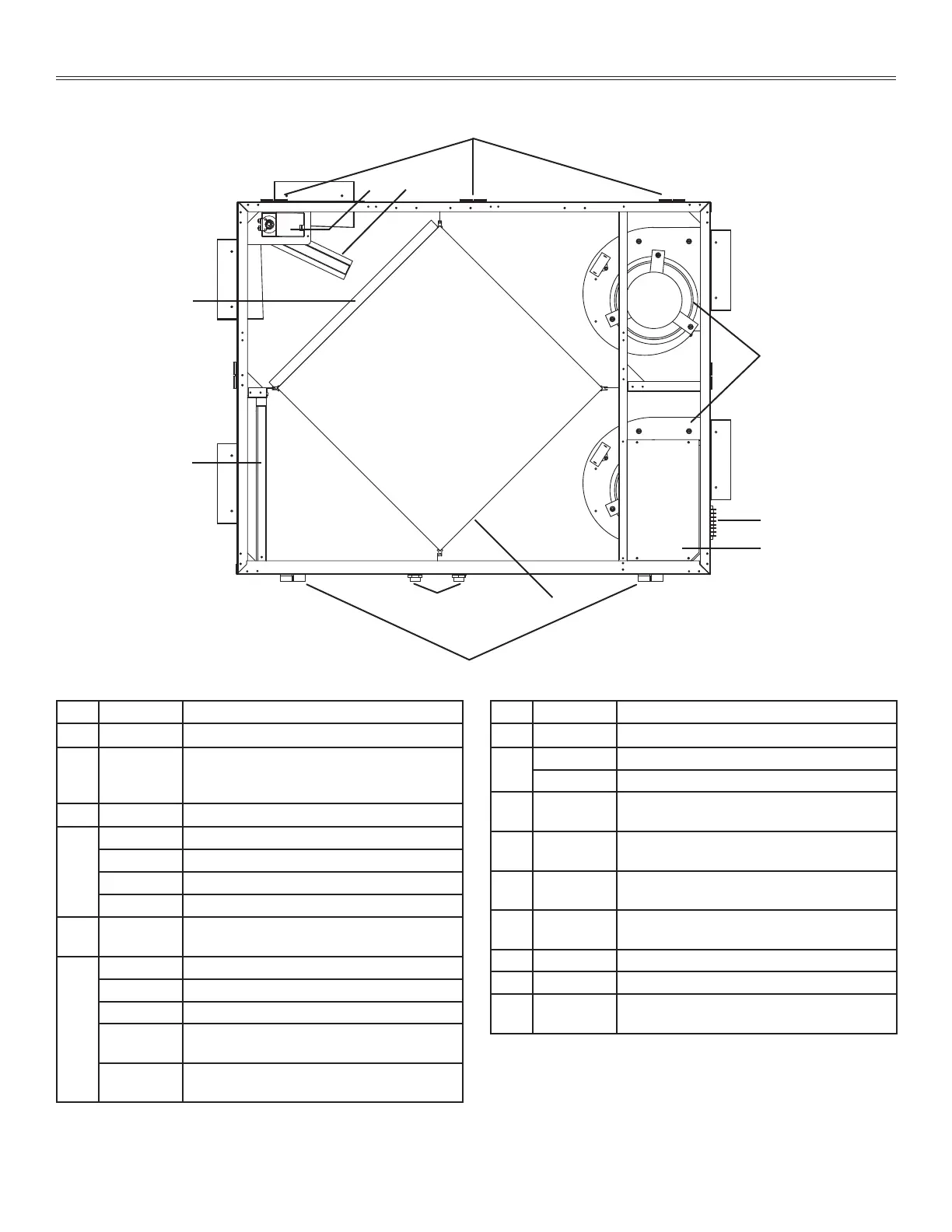

7. Service parts (cont’d)
7.3 7000
B
DC
E
F
G
H
J
I
K
VL0070
L
Ref. Part No. Description
B
16035 Door Latch-Keeper kit
C
225855
Damper Motor Belimo LMB24-3-T, 7000,
6LC, V6LC-12LC, V12LC (Recirculation
Defrost Option)
D
1604178 Fresh Air Damper
E
1604168 Blower Ass’y 7000
1604177 Blower Wheel (not shown)
1604169 Fan Motor 7000 (not shown)
63110 Capacitor 5 μF LC, 7000 (not shown)
F
202790
Terminal Strip 7-Pin Molex 38721-6707,
7000
G *
1808130 PCB Electronic 6LC, V6LC, 12LC, V12LC, 7000
202382 Thermistor 6LC, V6LC, 12LC, V12LC, 7000
63117 Transformer 7000
63345
Relay DPDT 120 VAC, 1/2 HP, 15 A @ 120 VAC,
7000, 6LC, V6LC, 12LC, V12LC
SV63117B
Relay DPST 120 VAC, 1 HP,
30 A @120VAC, 7000
* Not Shown.
Ref. Part No. Description
H
13036 Hinge Kit (male-female)
I
1604156 Core Poly CSA 7000
1604190 Core Poly UL 7000 U.S. only
J
1607456
Drain Fitting 6LC, V6LC, 12LC, V12LC,
7000 (unitary)
K
134147
Filter SWF 18.6" x 15.6" x 1" 7000 Exhaust
(unitary)
L
134145
Filter SWF 19" x 22.75" x 1" 7000 Supply
(unitary)
* 1608701
Optional MERV 7 Filter, 7000 Supply
(unitary)
* 1804103P Door Ass’y 7000 (Powder Coated option)
* 027123 Anti-vibration Bushing 7000 (unitary)
* 63344
Hanger Strap 18" Kit 6LC, V6LC, 12LC,
V12LC, 7000
