Electric TV Lift, TS700A & TS1000A
14
Adjusting the top stop:
The top stop can be adjusted to any preferred height, e.g. if you don’t want the lift to go all
the way up out of the cabinet. You can adjust just one or both end stops.
1. The more you move the glider down the cable
the earlier the lift will stop on the up stroke as
the end stop switch will be triggered sooner.
2. Raise the lift up to full height.

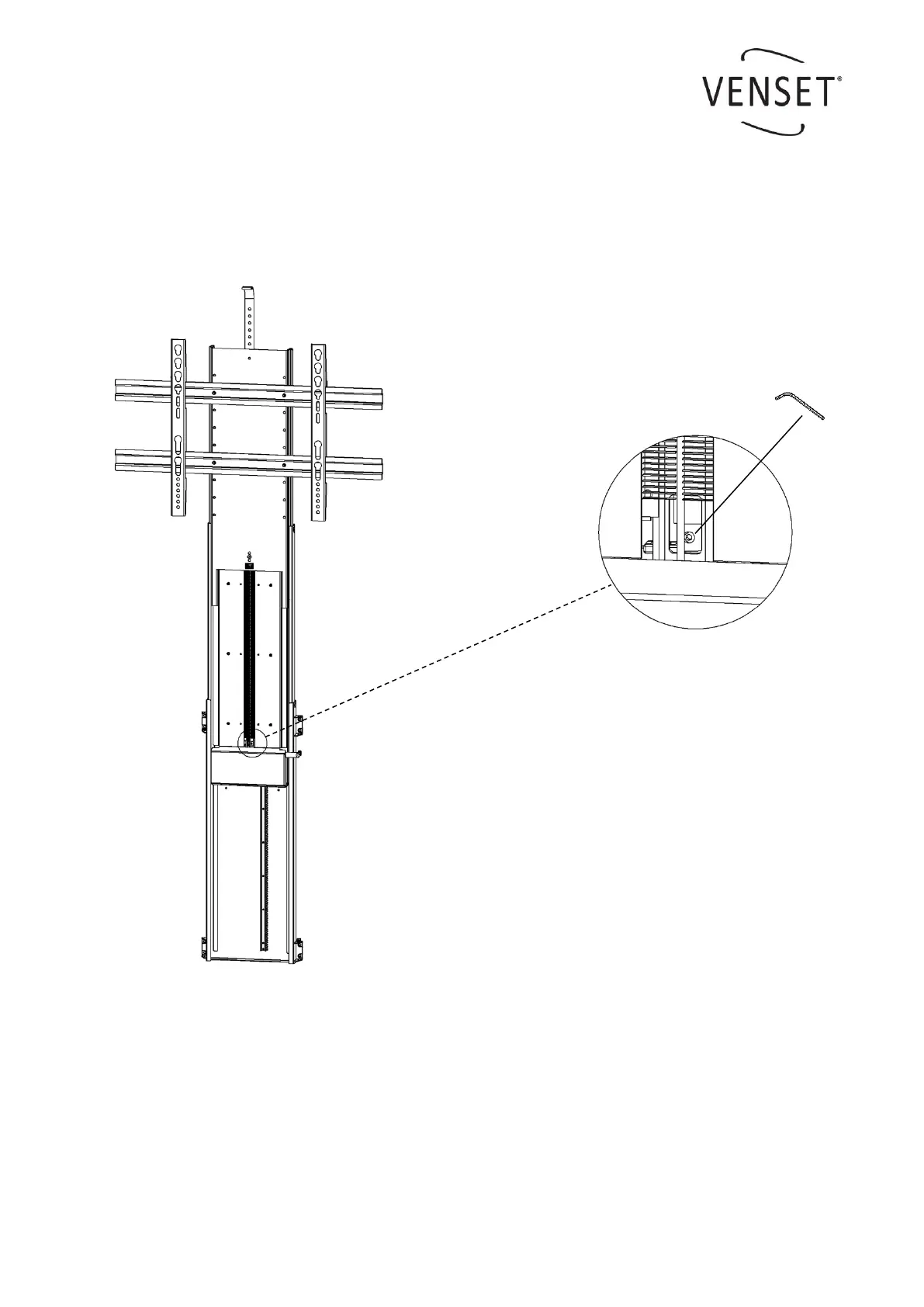

3. You will see the glider on the cable below the
nylon brushes (see fig.2)
4. Use a 2.5mm Allen key to loosen the screw in-
side the glider. (see fig.2)
5. Move the glider down the cable accordingly and
tighten the screw securely.
6. Test the lift fully up and down and check the de-
sired top stop position is as you require.
Fig. 2
