8. Adjusting the stroke length of the lift.
Adjusting the bottom stop:
The bottom stop can be adjusted to any preferred height, e.g. if you don’t want the lift to go
all the way down into the cabinet. You can adjust just one or both end stops.
1. The more you move the glider down the cable
the earlier the lift will stop on the down stroke
as the end stop switch will be triggered sooner.
2. Raise the lift up to the just above lowest posi-
tion that you want it to reach on the down
stoke.
3. Remove the small plastic cover plate (see fig.1)
and you will see the glider on the cable.
4. Use a 2.5mm Allen key to loosen the screw in-
side the glider. (see fig.1)
5. Move the glider down the cable accordingly and
tighten the screw securely.
6. Replace the plastic cover plate, the glider will
no longer be in this window.
7. Test the lift fully up and down and check the
desired bottom stop position is as you require.

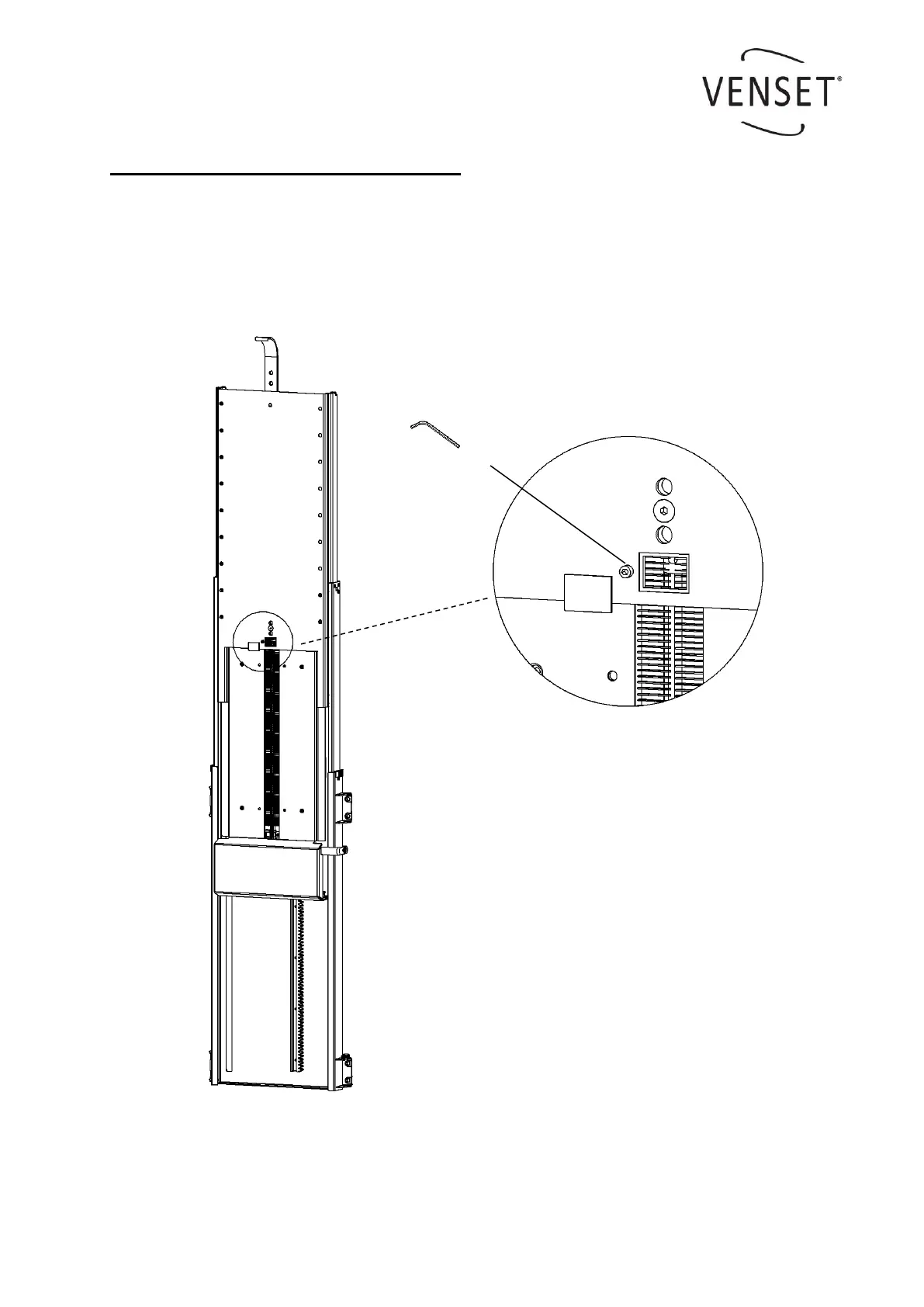

Fig. 1
