Air Conditioner Service Manual
14

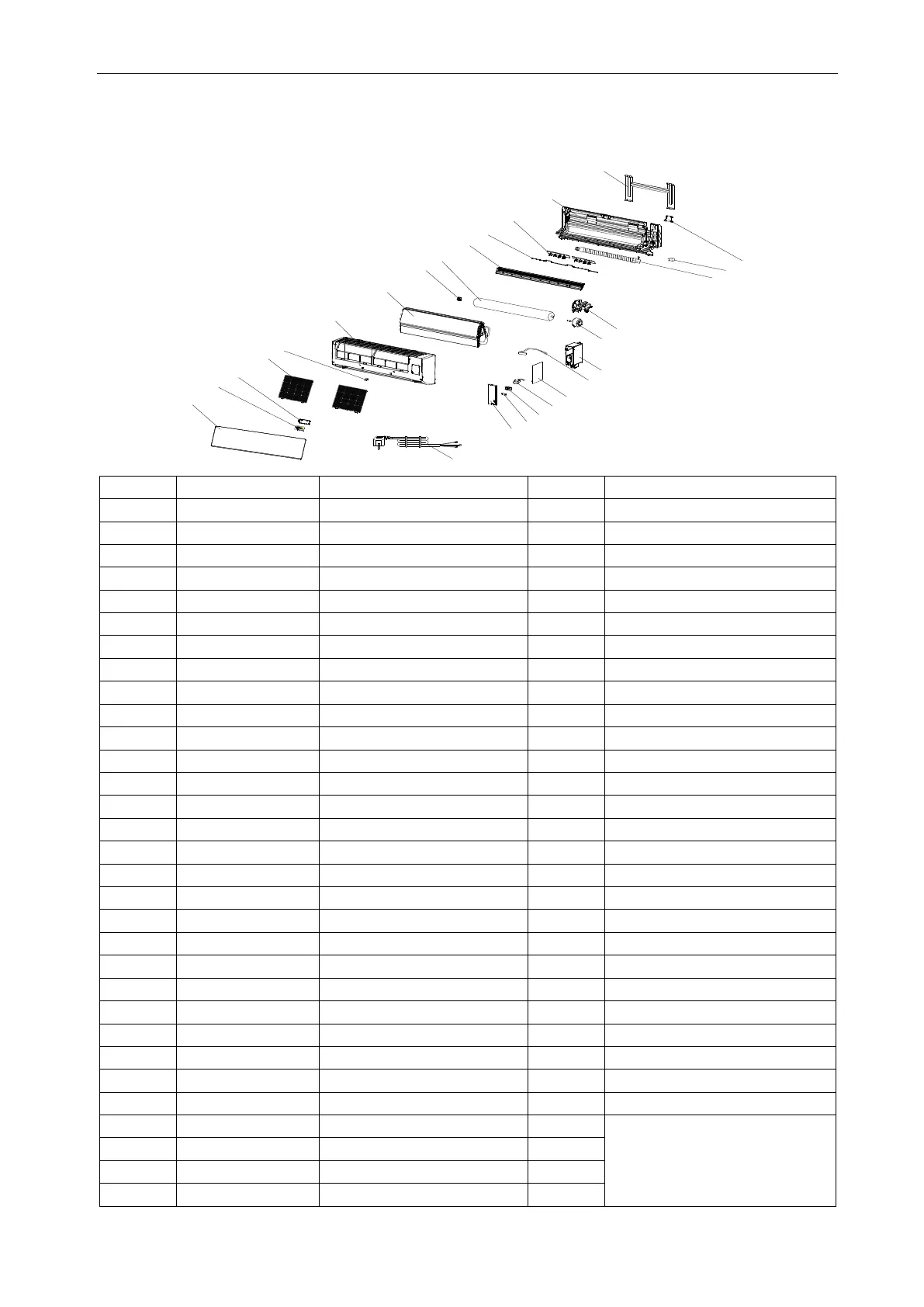

6. Explosion view and parts
Indoor Unit- VAC-09CHSA/XA21 PLUS
No.
Part No.
Part Name
Q’ty
Remark
1
41109-000042
Installation Plate
1
2
41199-003278
Base
1
3
41101-000042
Vertical Vane Assembly
2
4
41101-000189
Vertical Vane Connector
1
5
41103-000103
Vane
1
6
42004-000040
Cross Fan
1
7
42007-000001
Bearing Mount
1
8
92011-002807
Evaporator
1
9
41106-002347
Face Frame
1
10
41108-000066
Screw Cover
1
11
42008-000070
Air Filter
2
12
42003-000001
Display PCB Box
1
13
31102-000085
Display PCB
1
14
41106-002092
Front Panel
1
15
22007-000015
Power Supply Cord
1
16
41105-000146
Electrical Box Cover
1
17
42001-000103
Cable Clamp
1
18
11304-100023
Terminal
1
19
10502-100028
Transformer
1
20
31101-000669
Main PCB
1
21
41105-000104
Electrical Box
1
22
10104-100014
Indoor Sensor Assembly
1
23
22001-000265
Indoor Motor
1
24
42003-000060
Indoor Motor Cover
1
25
42009-000011
Drainage Hose
1
26
22001-000313
Vane Motor
1
27
41101-000242
In And Out Pipe Fixer
1
28
22013-001969
Remote Controller
1
Not shown in Explosion view
29
A1101-007483
Indoor Carton
1
30
A2006-000050
Left Foaming
1
31
A2006-000030
Right Foaming
1
20
21
19
18
17
14
13
12
11
10
9
8
7
6
5
4
3
2
1
22
23
24
15
16
25
26
27
