Venting VAC-12CHSA/XA21 PLUS - Explosion View and Parts - Outdoor Unit VAC-09 CHSA;XA21 PLUS

Air Conditioner Service Manual
15

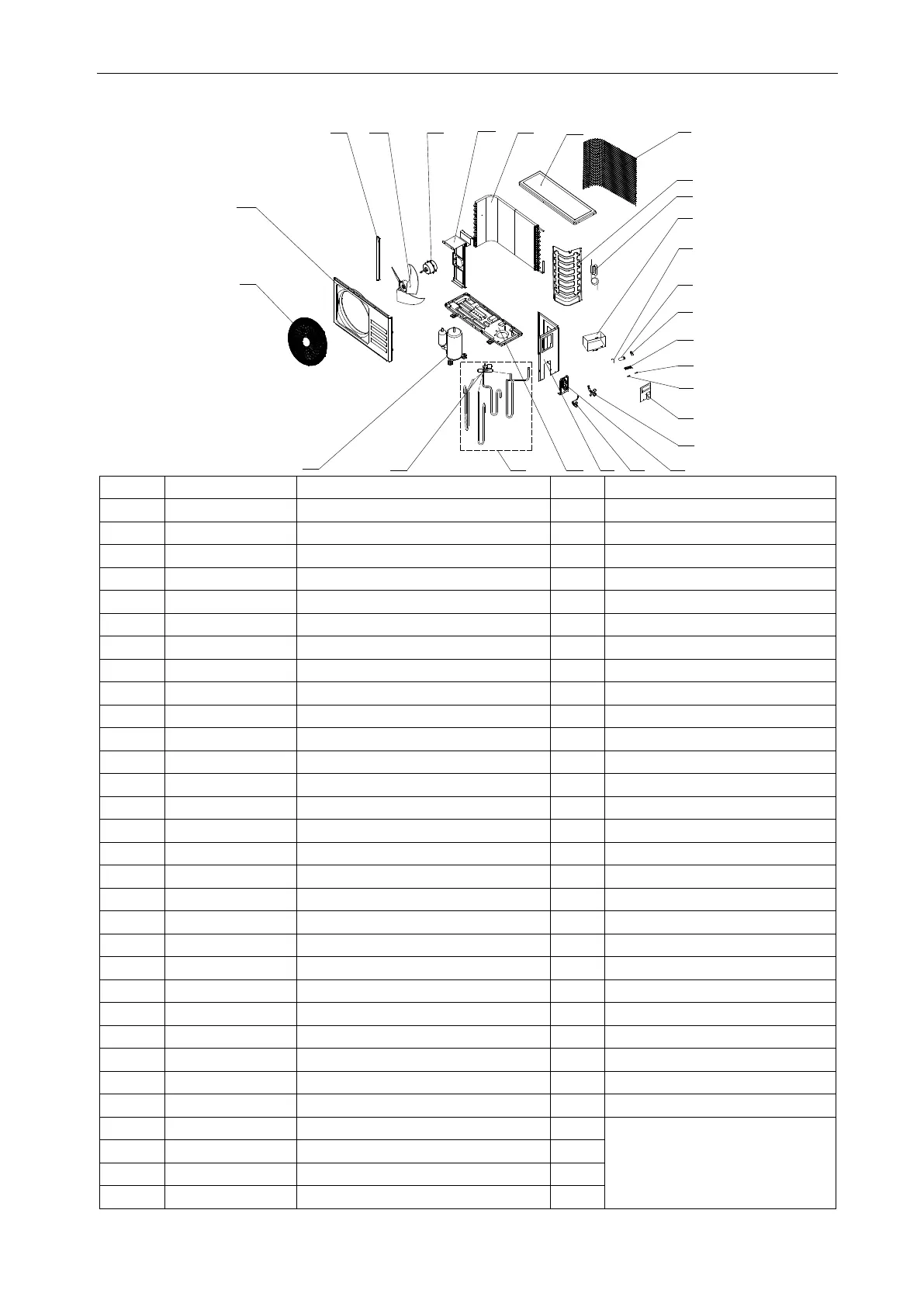

Outdoor Unit-VAC-09CHSA/XA21 PLUS
10
11
12
8
9
7
6
5
17
13
14
16
15
19
18
20
21
23
22
24
4
3
2
25
26
1
27
No.
Part No.
Part Name
Q’ty
Remark
1
42011-000108
Grille
1
Optional
2
41207-000017
Top Cover
1
3
92011-000391
Condenser
1
4
41203-000038
Outdoor Motor Supporter
1
5
22001-000006
Outdoor Motor
1
6
42004-000072
Propeller Fan
1
7
41205-000126
Left Grille Supporter
1
8
41206-000030
Front Plate
1
9
42011-000068
Fan Guard
1
10
92014-000323
Compressor And It Accessories
1
11
92008-000177
4-way Valve
1
12
92007-000816
4-way Valve Assembly
1
13
41202-000060
Base
1
14
41205-000056
Right Plate
1
15
92008-000043
Two-way Valve
1
16
41204-000012
Valve Supporter
1
17
92008-000115
Three-way Valve
1
18
41201-000004
Electrical Box Cover
1
19
42001-000037
Cable Clamp(φ6)
1
20
42001-000035
Cable Clamp(φ7)
1
21
11304-100007
Terminal
1
22
10303-100020
Fan Motor Capacitor
1
23
22003-000005
Compressor Capacitor
1
24
42001-000029
Capacitor Strip
1
25
41214-000342
Electrical Parts Box
1
26
92007-001918
Capillary Assembly
1
27
41208-000118
Partition plate
1
28
A2005-000494
Base Carton
1
Not shown in Explosion view
29
A1201-008091
Cabinet Carton
1
30
A1202-000013
Base Foaming
1
31
41213-000008
Cover Forming
1
