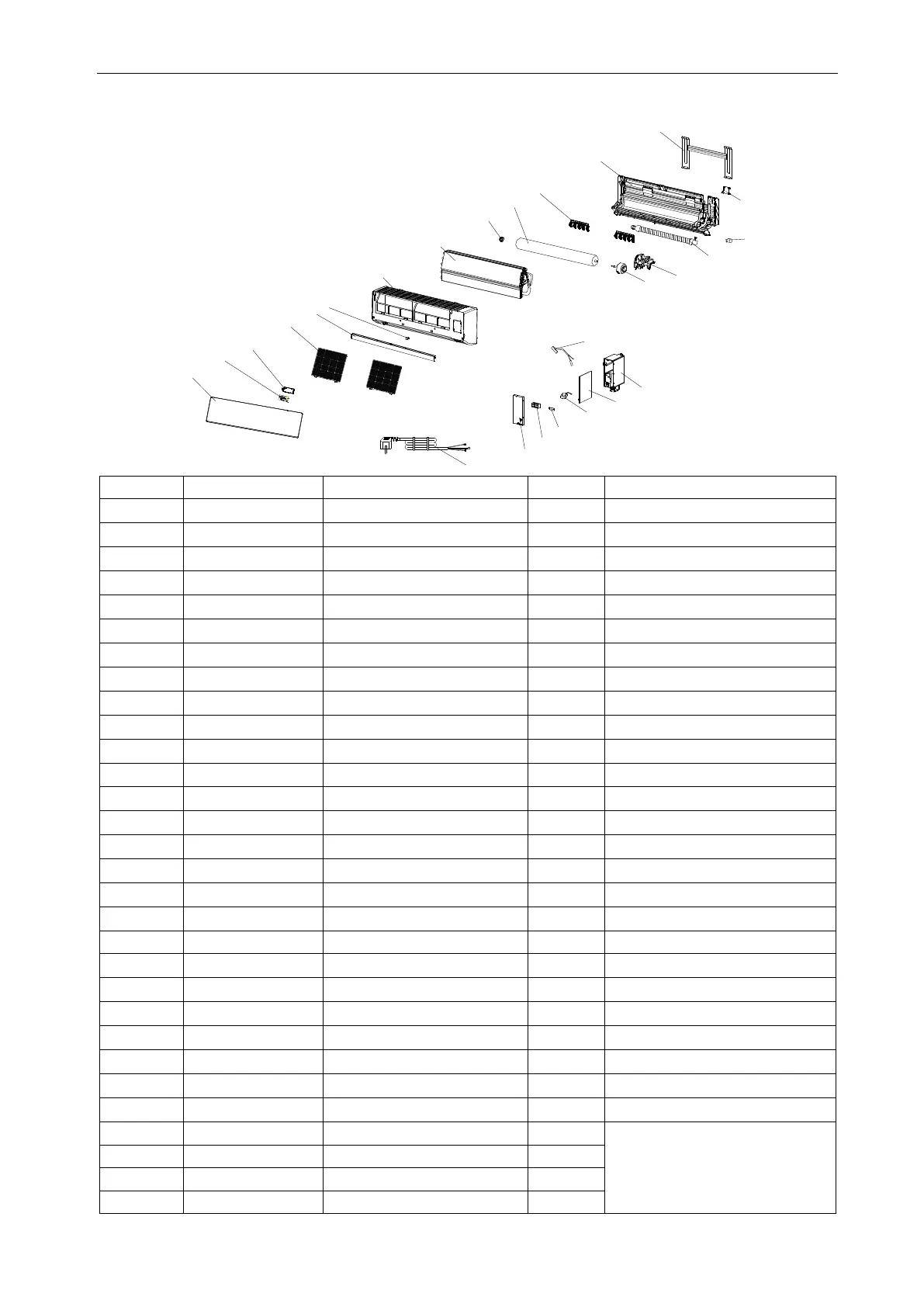

Venting VAC-12CHSA/XA21 PLUS - Explosion View and Parts - Indoor Unit VAC-12 CHSA;XA21 PLUS

Air Conditioner Service Manual
16
Indoor Unit- VAC-12CHSA/XA21 PLUS
No.
Part No.
Part Name
Q’ty
Remark
1
41109-000042
Installation Plate
1
2
41199-002755
Base
1
3
41101-000081
Vertical Vane Assembly
2
4
42004-000039
Cross Fan
1
5
42007-000001
Bearing Mount
1
6
92011-002783
Evaporator
1
7
41106-002371
Face Frame
1
8
41108-000066
Screw Cover
1
9
41103-000101
Vane
1
10
42008-000037
Air Filter
2
11
42003-000001
Display PCB Box
1
12
31102-000085
Display PCB
1
13
41106-002048
Front Panel
1
14
22007-000055
Power Supply Cord
1
15
41201-000068
Electrical Box Cover
1
16
11304-100023
Terminal
1
17
42001-000103
Cable Clamp
1
18
10502-100028
Transformer
1
19
31101-000562
Main PCB
1
20
41105-000104
Electrical Box
1
21
10104-100014
Indoor Sensor Assembly
1
22
22001-000265
Indoor Motor
1
23
42003-000060
Indoor Motor Cover
1
24
42009-000011
Drainage Hose
1
25
22001-000313
Vane Motor
1
26
41101-000242
In And Out Pipe Fixer
1
27
22013-001969
Remote Controller
1
Not shown in Explosion view
28
A1101-007485
Indoor Carton
1
29
41110-000221
Left Foaming
1
30
41110-000260
Right Foaming
1
22
23
25
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
24
20
26
21
