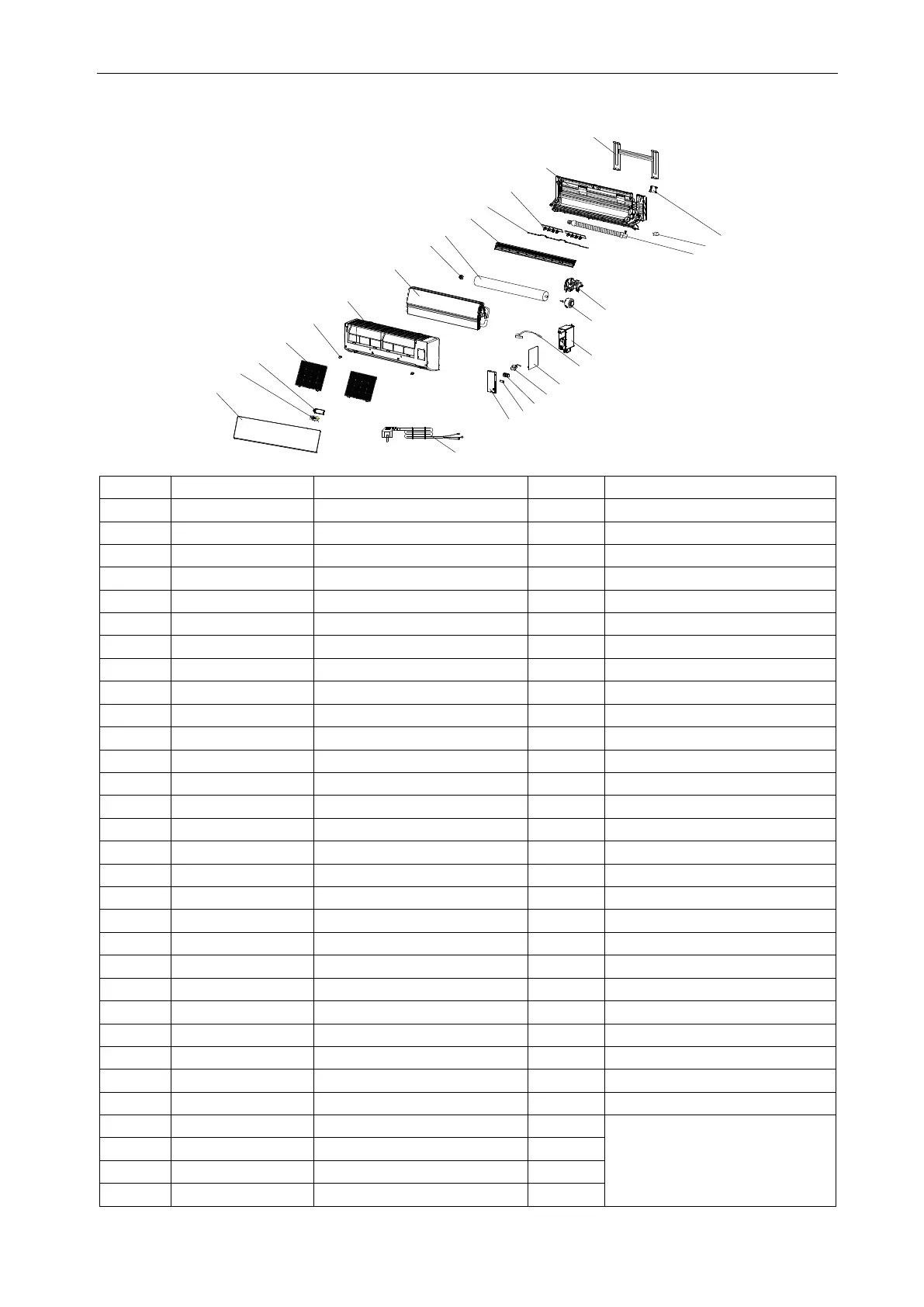

Venting VAC-12CHSA/XA21 PLUS - Explosion View and Parts - Indoor Unit VAC-18 CHSA;XA21 PLUS

Air Conditioner Service Manual
18
Indoor Unit- VAC-18CHSA/XA21 PLUS
20
21
19
18
17
14
13
12
11
10
9
8
7
6
5
4
3
2
1
22
23
24
15
16
25
26
27
No. Part No. Part Name Q’ty Remark
1 41109-000041 Installation Plate 1
2 41102-000041 Base 1
3 41101-000067 Vertical Vane Assembly 1
4 41101-000193 Vertical Vane Connector 1
5 41103-000149 Vane 1
6 42004-000010 Cross Fan 1
7 42007-000001 Bearing Mount 1
8 92011-002773 Evaporator 1
9 41106-002356 Face Frame 1
10 41108-000066 Screw Cover 2
11 42008-000075 Air Filter 1
12 42003-000001 Display PCB Box 1
13 31102-000085 Display PCB 1
14 41106-002078 Front Panel 1
15 22007-000055 Power Supply Cord 1
16 41105-000146 Electrical Box Cover 1
17 42001-000103 Cable Clamp 1
18 11304-100023 Terminal 1
19 10502-100028 Transformer 1
20 31101-000667 Main PCB 1
21 10104-100014 Indoor Sensor Assembly 1
22 41105-000104 Electrical Box 1
23 22001-000268 Indoor Motor 1
24 41108-000013 Indoor Motor Cover 1
25 42009-000011 Drainage Hose 1
26 22001-000321 Vane Motor 1
27 41101-000242 In And Out Pipe Fixer 1
28 22013-001969 Remote Controller 1
Not shown in Explosion view
29 A1101-007486 Indoor Carton 1
30 A2006-000040 Left Foaming 1
31 A2006-000019 Right Foaming 1
