Venting VAC-12CHSA/XA21 PLUS - Explosion View and Parts - Outdoor Unit VAC-18 CHSA;XA21 PLUS

Air Conditioner Service Manual
19

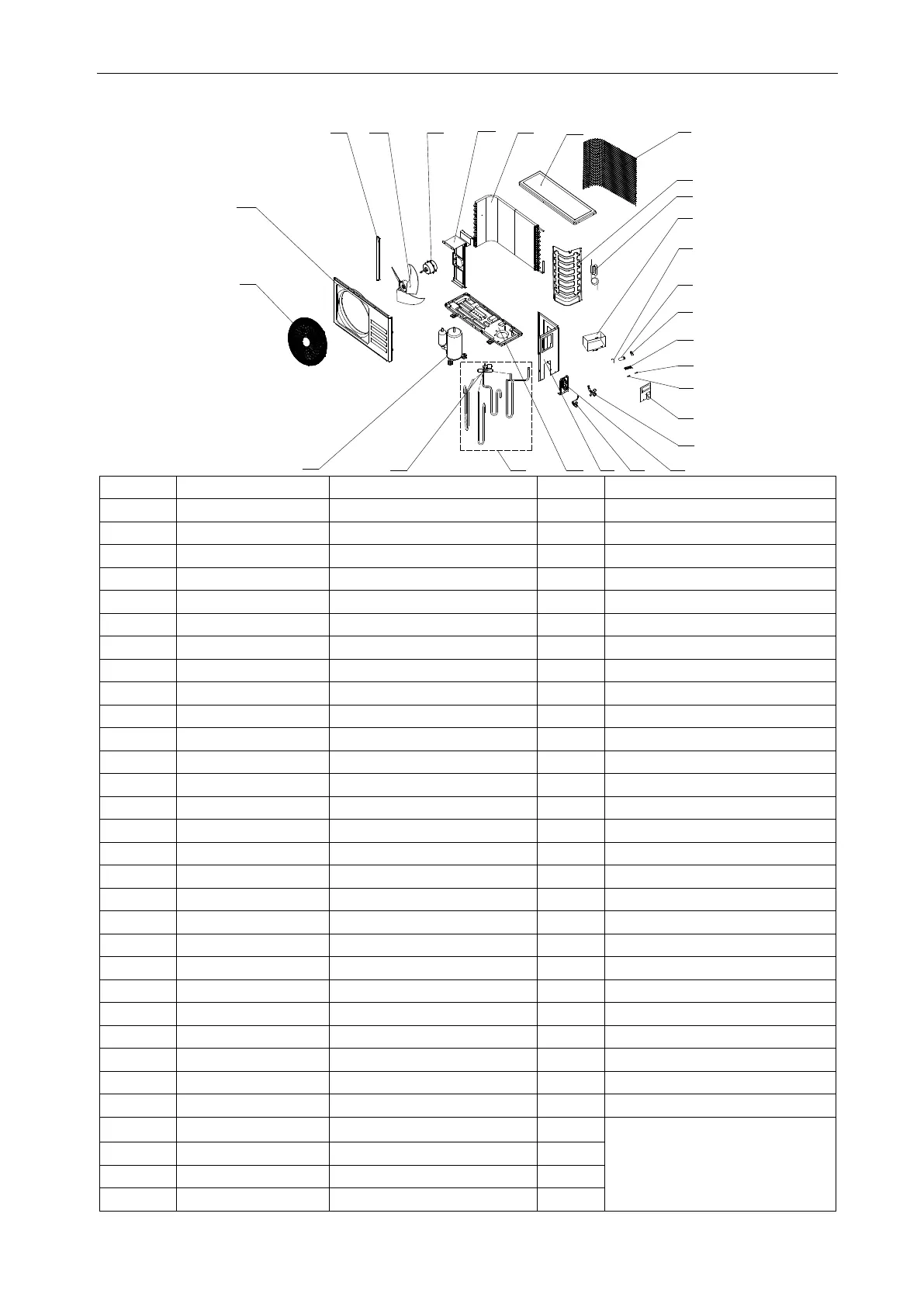

Outdoor Unit- VAC-18CHSA/XA21 PLUS
10
11
12
8
9
7
6
5
17
13
14
16
15
19
18
20
21
23
22
24
4
3
2
25
26
1
27
No.
Part No.
Part Name
Q’ty
Remark
1
42011-000110
back Grille
1
Optional
2
41207-000015
Top Cover
1
3
92011-000162
Condenser
1
4
41203-000037
Outdoor Motor Supporter
1
5
22001-000008
Outdoor Motor
1
6
42004-000083
Propeller Fan
1
7
41205-000124
Left Grille Supporter
1
8
41206-000037
Front Plate
1
9
42011-000070
Fan Guard
1
10
92014-000584
Compressor
1
11
92008-000193
4-way Valve
1
12
92007-005092
4-way Valve Assembly
1
13
41202-000055
Base
1
14
41205-000054
Right Plate
1
15
92008-000018
Two-way Valve
1
16
41204-000010
Valve Supporter
1
17
92008-000124
Three-way Valve
1
18
41201-000005
Electrical Box Cover
1
19
42001-000037
Cable Clamp(φ6)
1
20
42001-000038
Cable Clamp(φ10)
1
21
11304-100007
Terminal
1
22
10303-100021
Fan Motor Capacitor
1
23
22003-000004
Compressor Capacitor
1
24
42001-000030
Capacitor Strip
1
25
41214-000342
Electrical Parts Box
1
26
92007-001902
Capillary Assembly
1
27
41208-000132
Partition plate
1
28
A1401-000011
Base Carton
1
Not shown in Explosion view.
29
A1201-008094
Cabinet Carton
1
30
A1202-000005
Base Foaming
1
31
41213-000006
Cover Forming
1
