Ventmatika EKA - Page 6

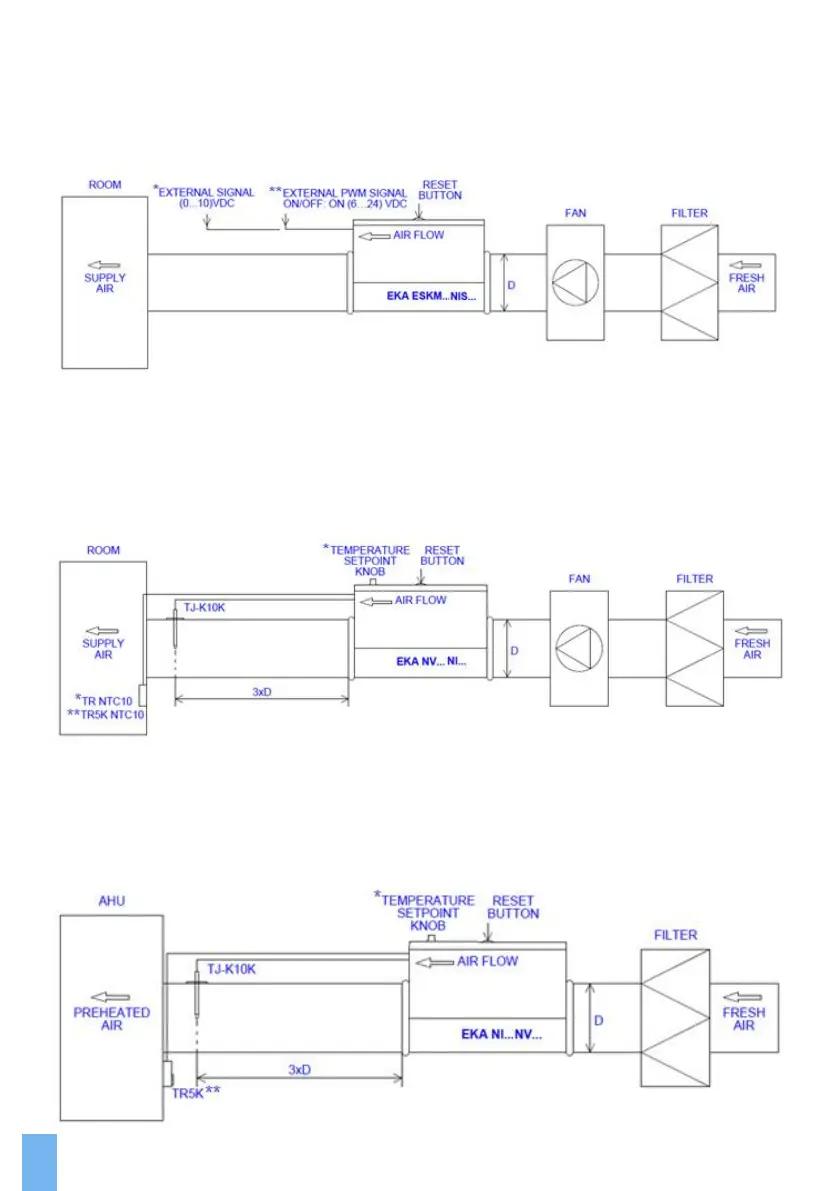

Fig. 4. Mounng example EKA NIS/ESKM…
*- External control signal (0…10VDC) is used in EKA NIS type heater.
**- External PWM control signal ON/OFF: ON (6…24VDC) is used in EKA ESKM type heater.
Fig. 5. Mounng example EKA NV/NI…2NTC…
*- Temperature set point knob and TR NTC10 are used in EKA NV 2NTC heater version.
**- TR5K NTC10 is used in EKA NI 2NTC heater version.
Fig. 6. Mounng example EKA NV/NI… (Preheater)
**- TR5K used only in EKA NI pre-heater version.
*- Temperature set point knob used only in EKA NV pre-heater version.
Fig. 4
Fig. 5
Fig. 6
AHU – Air handling unit
6
