9. To adjust the front of the deck, loosen the cross
bolts (B) in the carrier frame.
B
Move the bolts forward in the slots to lower the
deck or move the bolts rearward in the slots to
raise the deck. slight movement of the bolt
in the front carrier slots will make a signicant
dierence in the front deck height.
10. After deck has been leveled, make sure the
cross bolts in the carrier frame have been tight-
ened and the nuts on the rear height adjustment
links have been locked against the rod ends.
Tire pressure should be maintained between 8-10
psi (55-69 kPa). Pressure variance between the left
and right tires can cause an uneven cut.

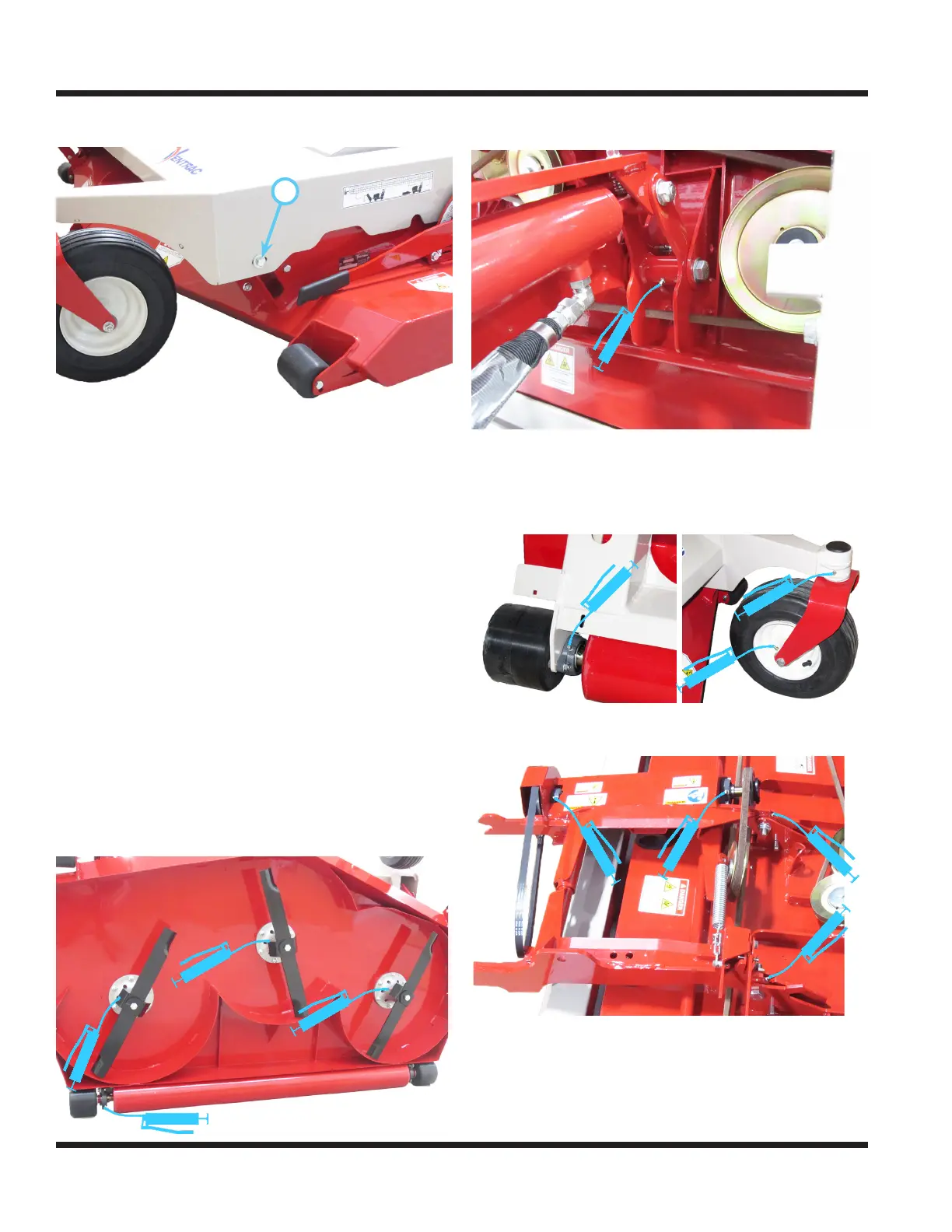

Lubrication is required at the following locations
using a lithium complex NLGI #2 grease. Refer to
the maintenance schedule for service intervals and
amount of grease.
1. Rotate the mower deck up to the service position.
2. Grease the three spindles and the right rear
roller bearing.
3. If the mower deck is equipped with a hydraulic
ip-up kit, grease the ip-up rocker bracket.
4. Return the deck to the operating position and
lower to the ground.
5. Grease the left rear roller bearing, the left and
right caster wheel pivots, and the left and right
wheel axles.
6. Grease the drive shaft bearings and the hitch
arm pivots. Wipe o any excess grease.
