Air duct installation
2
min 3°
3
12
Outer wall
Inner wall

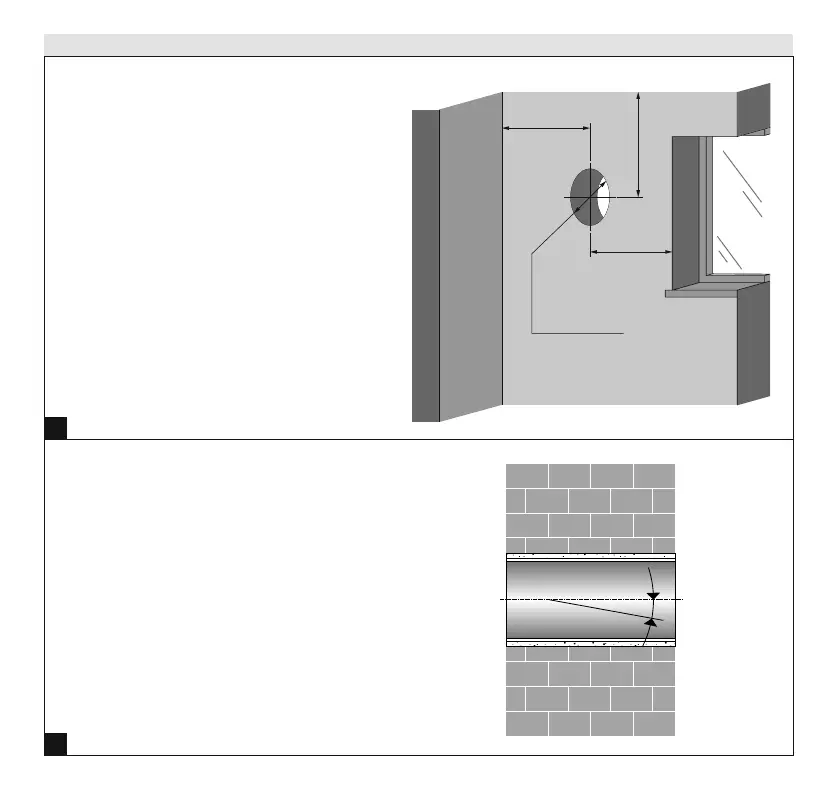

Install the air duct with the minimum slope 3°
downwards to ensure condensate drainage. Fill the
gap between the air duct and the wall with
mounting foam.
Prepare a round hole in the exterior wall of the
building. The hole size and the minimum
recommended distance to a mounting surface,
for example, a wall, ceiling or a window are
shown in the Figure.
min 20"
min 20"
min 20"
100 Kit - DIA (5")
125 Kit - DIA (6")
150 Kit - DIA (7")
