The fan shown in the figures may slightly differ from your model, while the installation sequence is maintained.

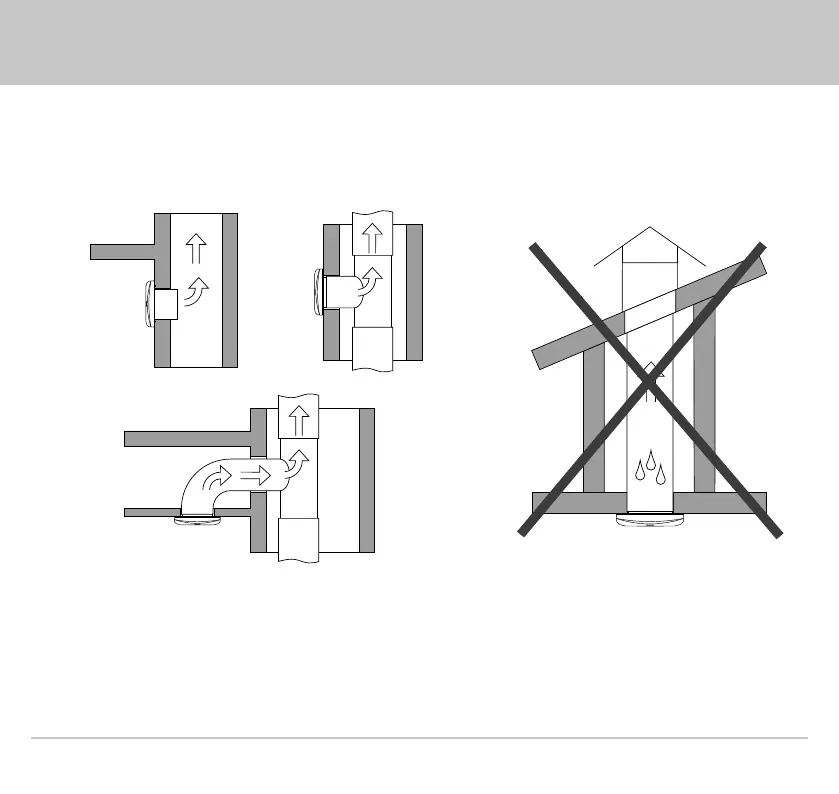

The fan is designed for wall or ceiling mounting with direct air exhaust to the ventilation shaft or into the round air duct of
matching diameter.
The fan mounting sequence is shown in figures.
