One Disc User Manual
7

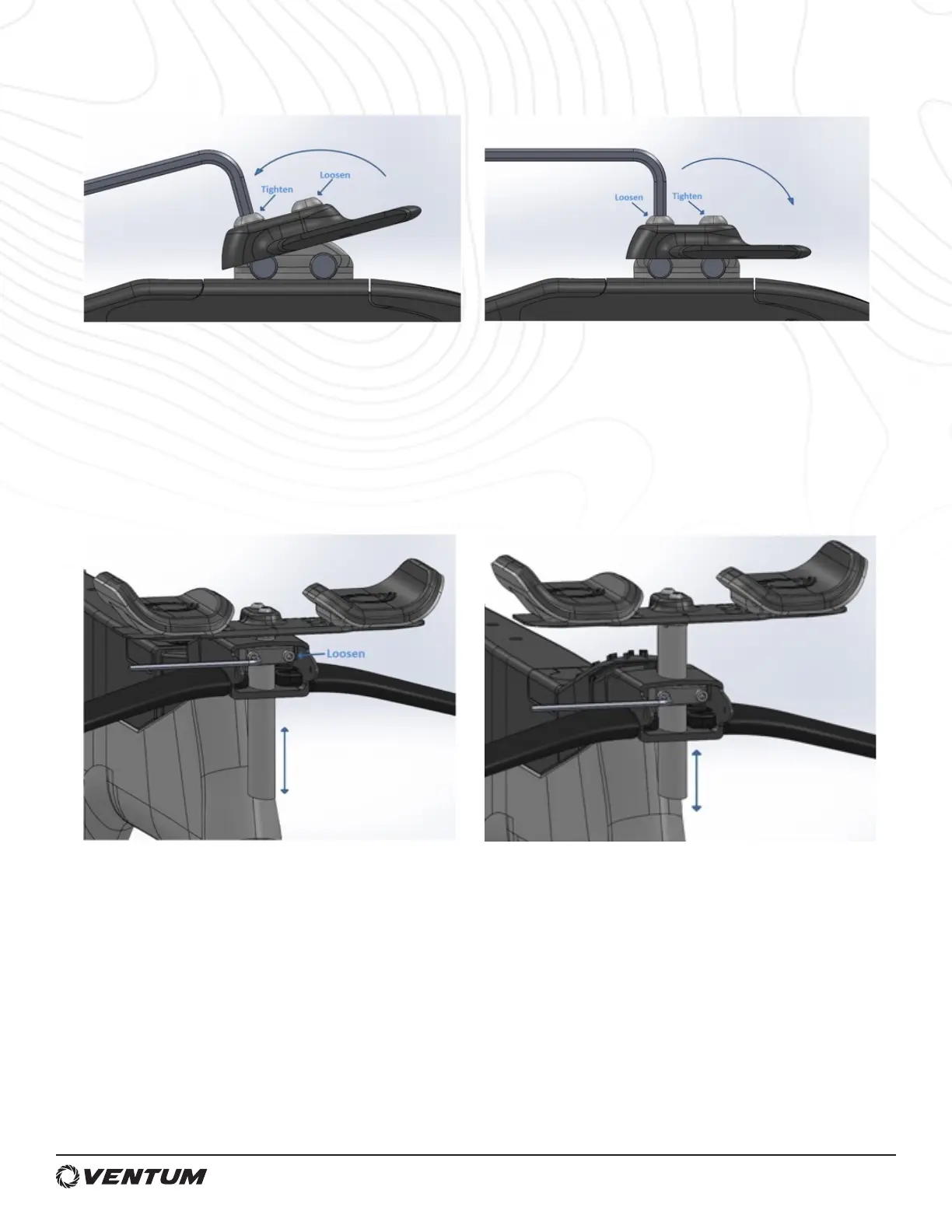

Mast tilt
▼ Fully loosen the right screw
▼ Adjust the left screw until the mast is at the desired angle
▼ Torque the right screw to 7 Nm
Mast height
▼ Loosen the mono-riser bolts until the riser post can slide freely
▼ Adjust the mast until it is at the desired height
▼ Torque the mono-riser bolts to 7 Nm
