12-volt DC power must be there to activate power injector.
The power supply should be turned off when
connecting/disconnecting cables to power injector and
antenna, but should be turned on when testing for voltage.
TV
2
TO TVs
Auxiliary Satellite
Receiver Connection
Front Side of
Power Supply

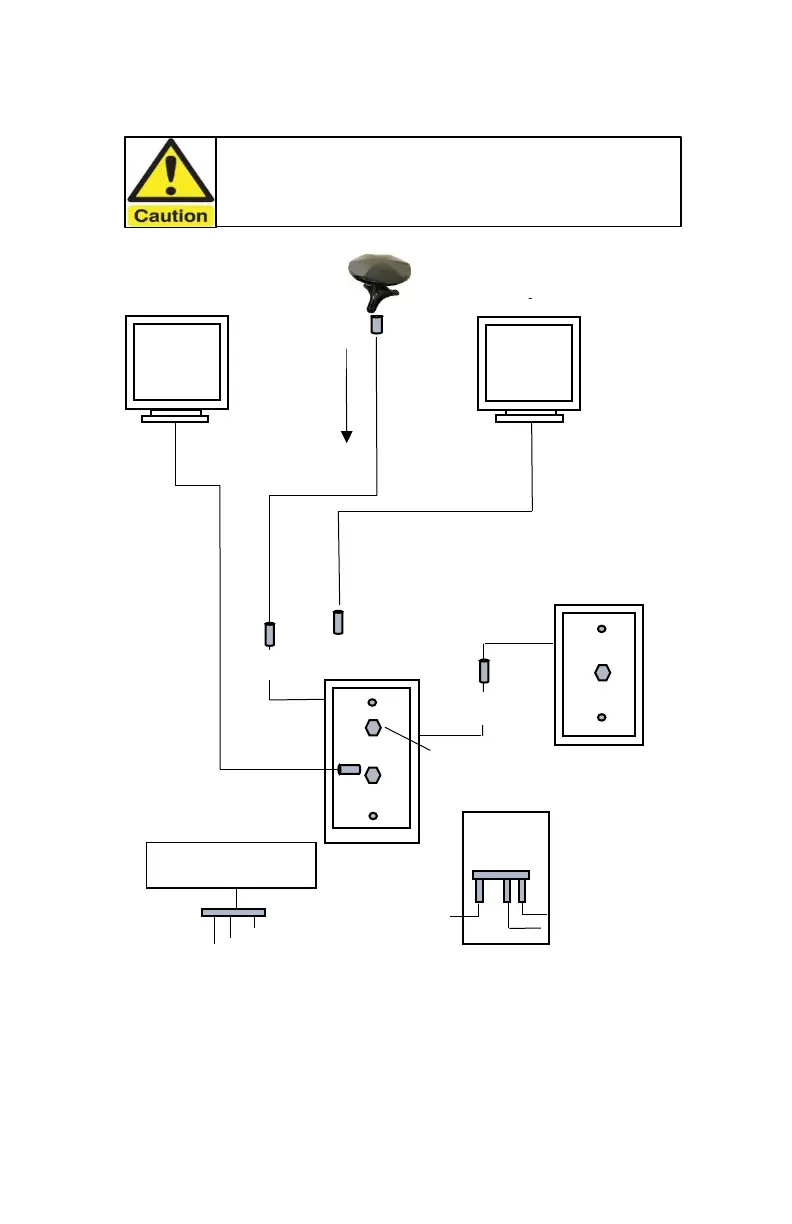

FIG 7a
Cable IN
Ant IN
TV – Set 2
Power Supply
(Back Side)
On Set 2 – There may be a
splitter
Park Cable Input
Cable IN
Amplified
Signal
TV Ant
IN
TV1
