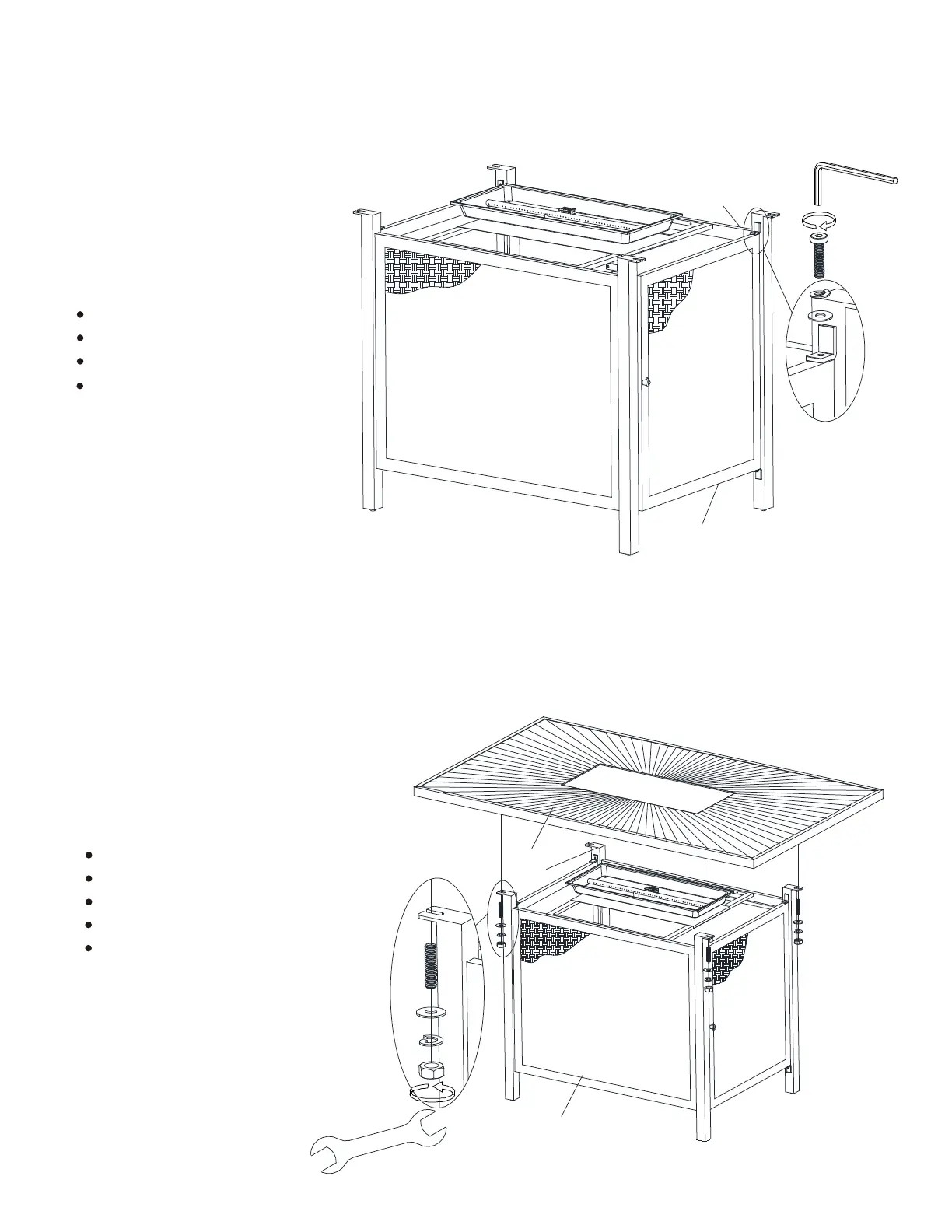

Figure 6
Loosely attach Door (G) to the Right Side Panel (E) by bolts (EE) through lock washers (HH), flat washers (GG), using
Allen wrench (JJ). See figure 6.
Once all the bolts are in place. Securely tighten all the bolts (EE&FF) with Allen wrench (JJ). Base fully assembled.
7.
Hardware Used:
AA Bolt (5/16” x 30mm)
BB Flat Washer (φ8.5) x 4
CC Lock Washer (φ8.5) x 4
Figure 7
Fix the Table Top (B) onto the Base Assembly with Bolt (AA), Flat Washer (BB), Lock Washer (CC) and Nut (DD), screw
the Nut (DD) tightly by using the Wrench (II). See figure 7.
DD Nut (5/16”)
x 4
II Wrench
x 1
9 .
EE
JJ
HH
G
GG
E
BB
CC
B
DD
II
AA
D
E
8.
9
Hardware Used:
EE Bolt (1/4” x 25mm)
GG Flat Washer (φ6.5) x
x
2
2
HH Lock Washer (φ6.5) x 2
JJ Allen Wrench x 1
x 4
To Next Page
