Veranda 2127099 - Page 8

Hardware Used:
FF Bolt (1/4” x 30mm)
GG Flat Washer (φ6.5) x
x
4
4
HH Lock Washer (φ6.5) x 4

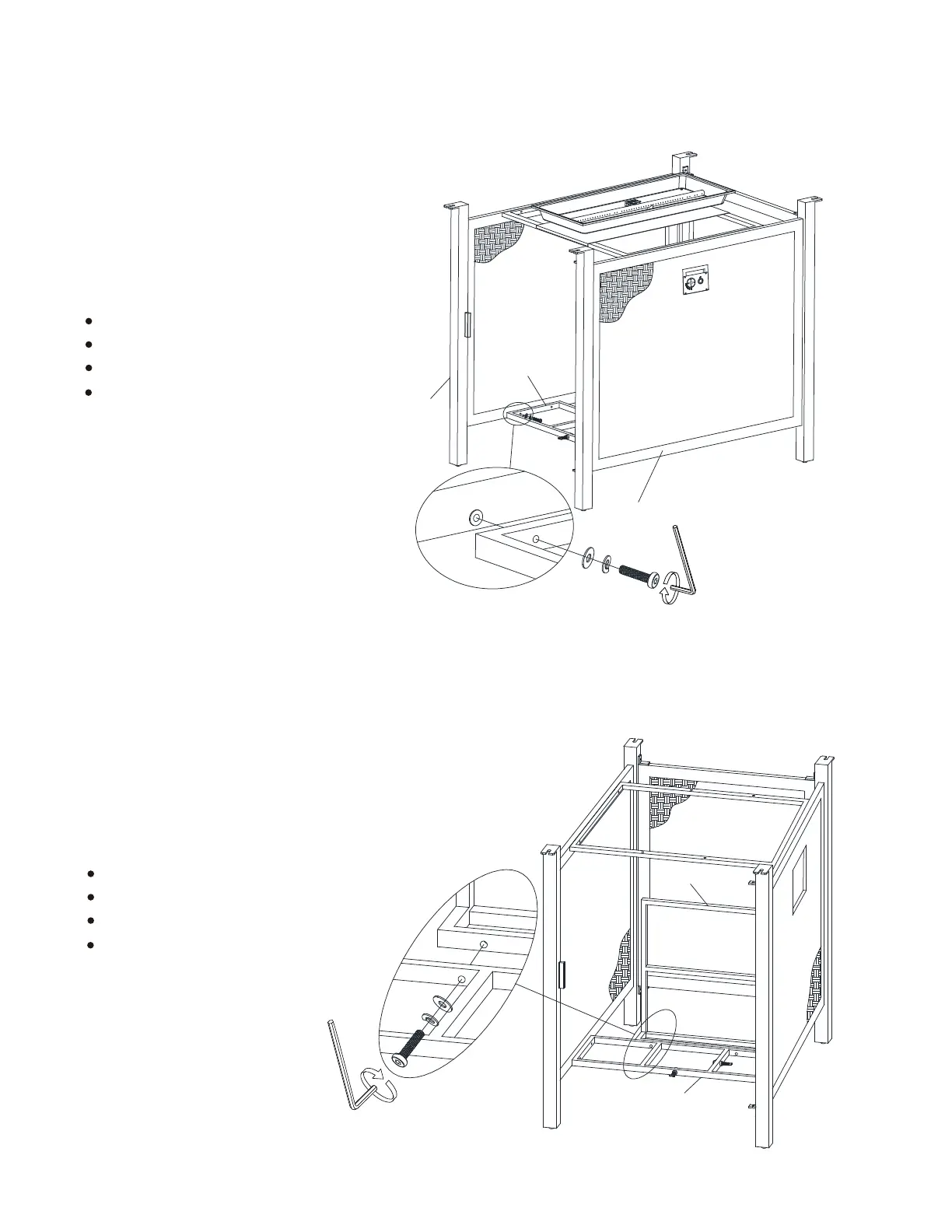

Loosely attach Gas Tank Support (H) to the Left Side Panel (D) and Right Side Panel (E) by bolts (FF) through lock
washers (HH), flat washers (GG), using Allen wrench (JJ). See figure 4.
DO NOT TIGHTEN BOLTS AT THIS POINTS.
JJ Allen Wrench x 1
5.
Loosely attach Gas Tank Support (H) to the Gas Tank Baffle (I) by bolts (FF) through lock washers (HH), flat washers
(GG), using Allen wrench (JJ). See figure 5.
DO NOT TIGHTEN BOLTS AT THIS POINTS.
6 .
Figure 5
GG
D
FF
JJ
E
HH
H
FF
HH
I
G
JJ
G
H
Figure 4
8
Hardware Used:
FF Bolt (1/4” x 30mm)
GG Flat Washer (φ6.5) x
x
2
2
HH Lock Washer (φ6.5) x 2
JJ Allen Wrench x 1
