Connecting a Door
Installation

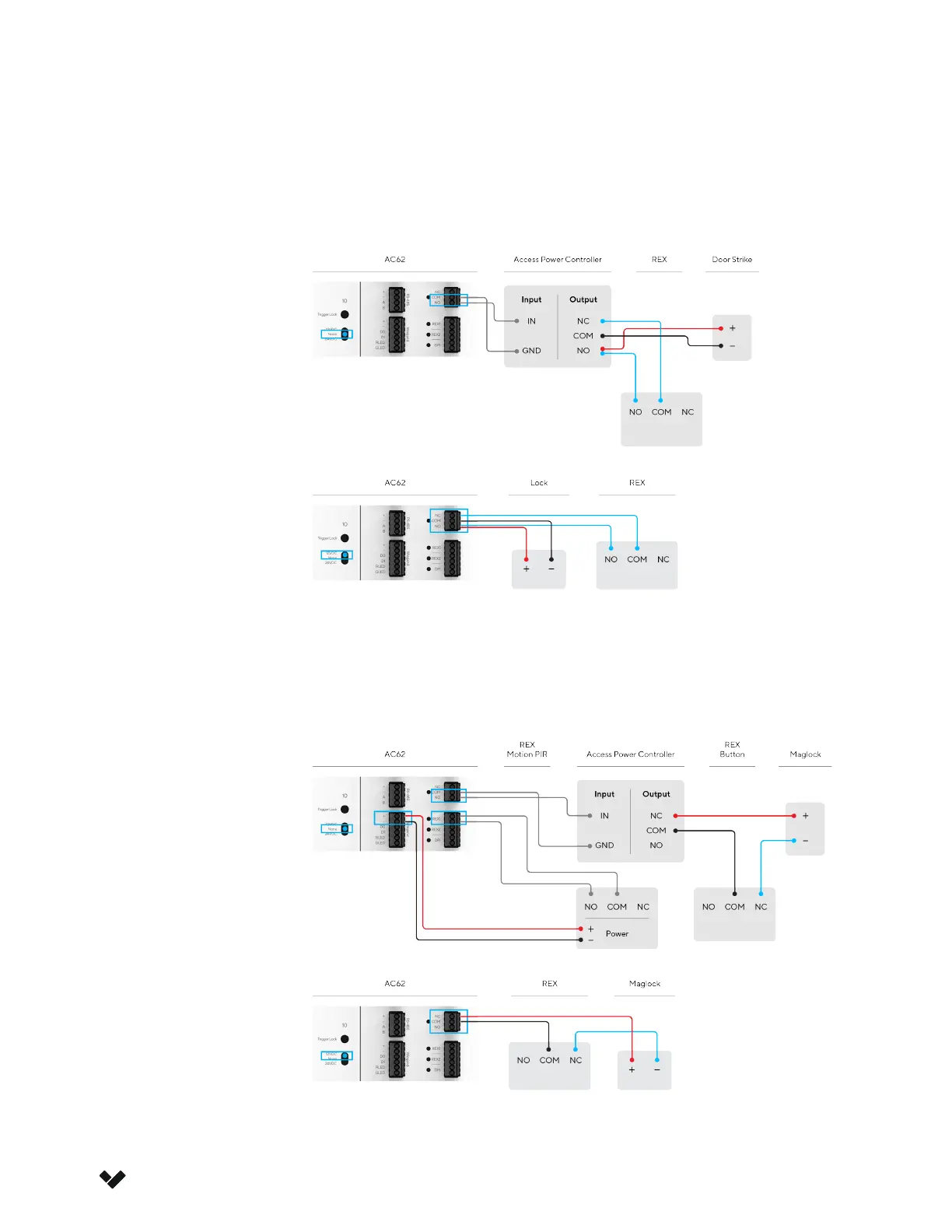

6a. Wiring the REX With the Door Strike
For safety-related applications, wire the REX in parallel with the Door Strike. You can wire additional REX
switches and sensors to the door cassette if needed.
6b. Wiring the REX With an Electromagnetic Lock
For safety-related applications, wire the REX directly to the mag lock. You can wire additional REX switches
and sensors to the door cassette if needed.
DRY
Conguration
DRY
Conguration
WET
Conguration
WET
Conguration
