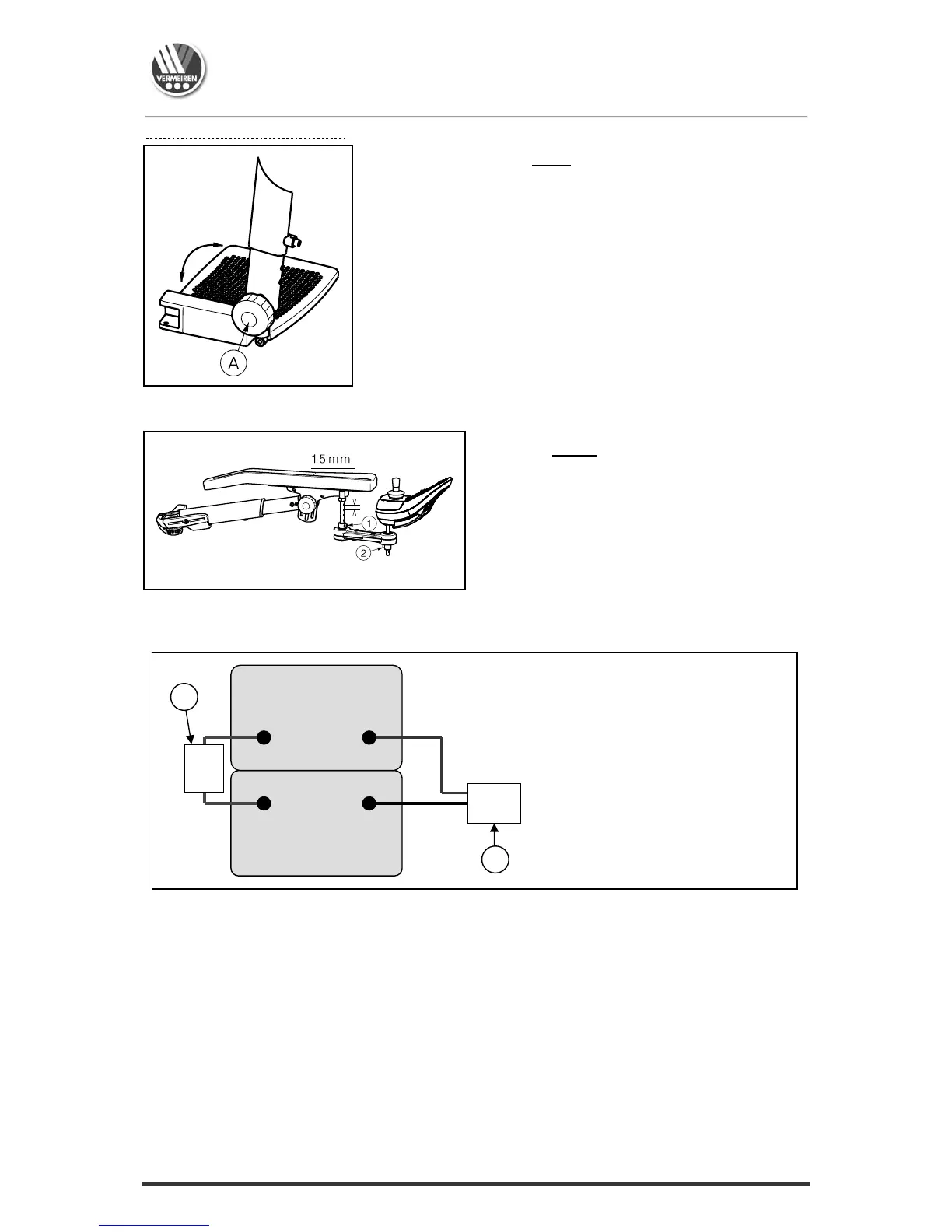

* Adjusting angle footplates:
Adjust the angle
of the footrests as follow:
1. Loosen the starknob Ⓐ.
2. Adjust the angle of the footplate to a
comfortable position (range: 110°, steps 11°).
3. Tighten the starknob Ⓐ
properly.
Check that the footrests are positioned
identically on both sides.
3.3.6 Adjusting operator control
Adjust the height of the operator control as
follow (range 105 mm: steps from 15 mm):
1. Loosen the screws  and/or .
2. Adjust the operator control to a
comfortable height.
3. Retighten the screws  and/or 
properly.
3.4 Battery connections
24 V
+
+
-
-
Black
Red
1
2
1 = Blow fuse
2 = Plug
(electronic system)
Brown
150 A
