3.5 Tyre changing
L
CAUTION: There must be no air in the tube before the tyre can be removed.
L CAUTION: Risk of damage - If handled improperly, the rim might become
damaged.
Only an expert can guarantee correct assembly. Work not done by your specialist
dealer, would void any warranty claims.
Use only inflating equipment which complies to regulations and indicates the pressure in bar.
We do not accept any liability for damage caused by using wrong inflation equipment or
wheels.
L WARNING: Risk of injury - Check that the pressure is correct.
L CAUTION: Risk of injury - Make sure that no objects, body parts or inner tubes
are pinched between the tyre and the rim when mounting a tyre.

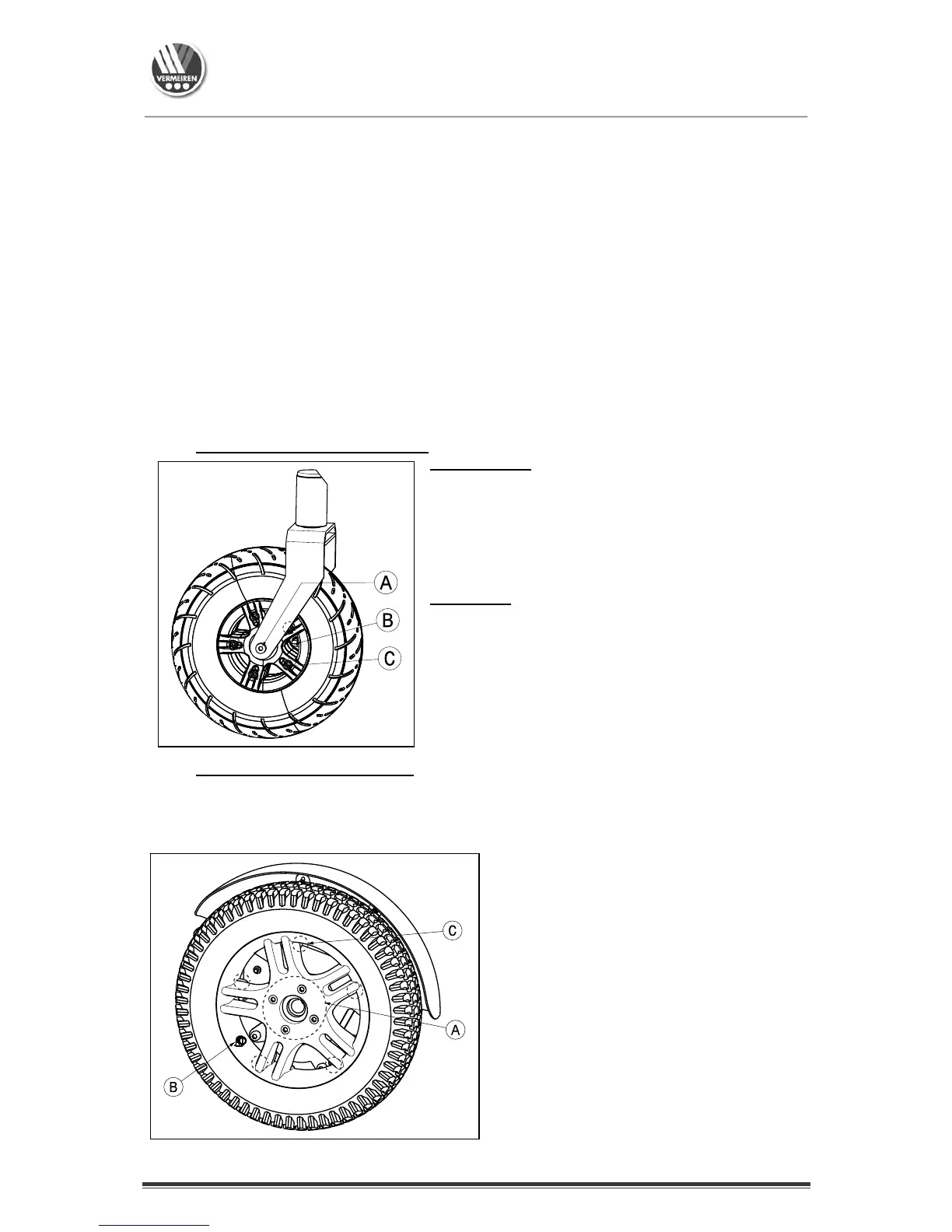

Steering wheels (front wheels)
DISMANTLING
A. Loosen the screw on the steering wheel axle and
remove it from the steering wheel fork.
B. Let the air out of the steering wheel by lightly pressing
the pressure pin on the valve.
C. Loosen the 5 screws that hold the split rim together.
Now separate the rim sides.
ASSEMBLY
Insert the partly-filled inner tube into the tyre.
C. Connect the two sides of the rim through the tyres and
use the 5 connecting screws to screw the rim
together.
B. Make sure that the valve juts out of the valve opening
in the rim.
A. Put the wheel back into the front wheel fork and inflate
the wheel.
Driving wheels (rear wheels)
L WARNING: Risk of injury - Make sure all screws are firmly secured by hand
before driving with your electric wheelchair. Screw adhesive (ex. Loctite) should
be applied to the screws on the flange. Screw adhesive will only work if the thread
is free of grease and particles.
