Vertical Express I-2 - Replacement Parts

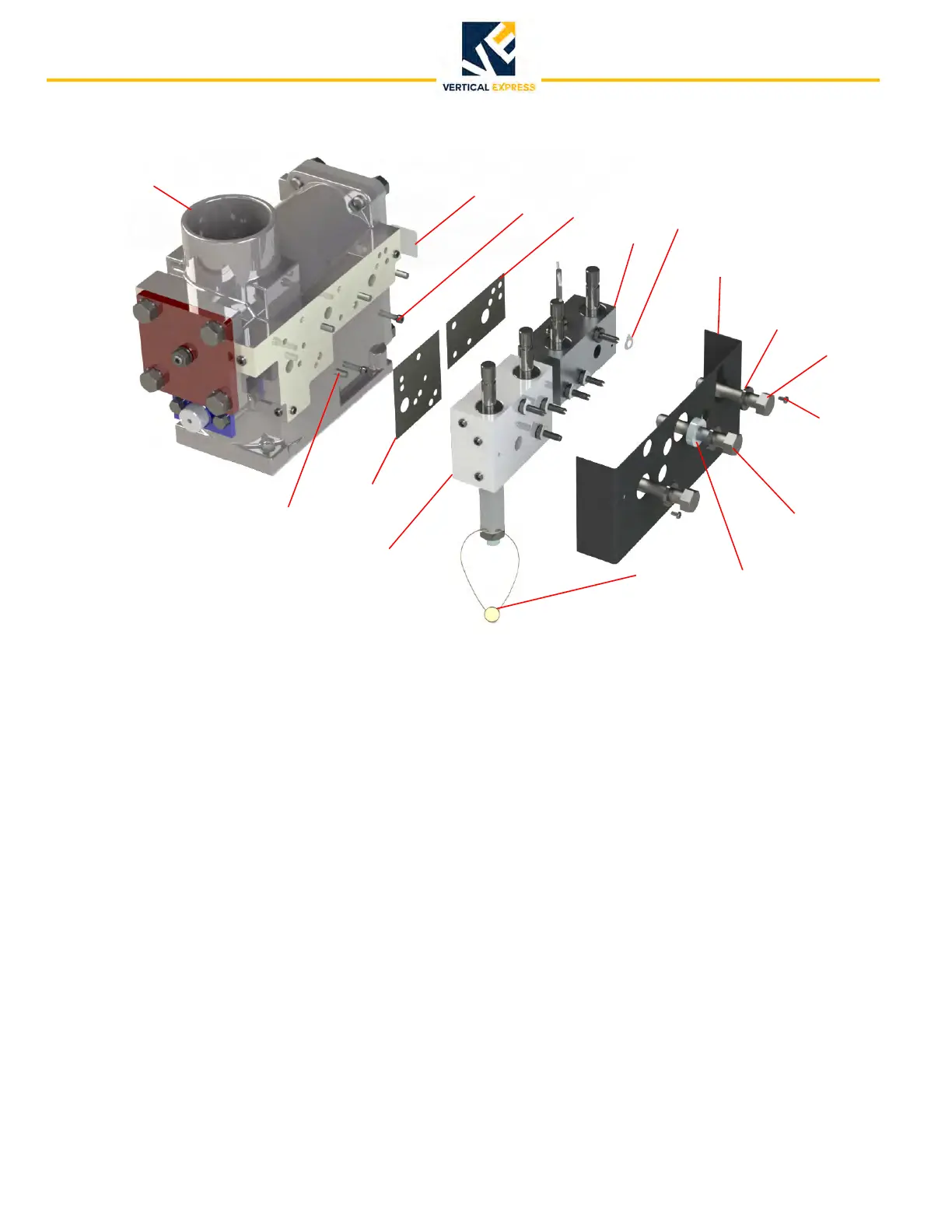

Replacement Parts I-2 / I-3 Valve
22 ©Vertical Express
Replacement Parts
ITEM PRINT NO. DESCRIPTION
1 114874 Valve Main Body Assembly, I-3, Down
148323 Valve Main Body Assembly, I-2, 125 GPM EP Units
137744 Valve Main Body Assembly, I-2, 120-215 GPM Units
137743 Valve Main Body Assembly, I-2, 30-100 GPM Units
189131 Valve Main Body Assembly, I-2F, 125 GPM EP Units
189128 Valve Main Body Assembly, I-2F, 120-215 GPM Units
189127 Valve Main Body Assembly, I-2F, 30-100 GPM Units
2 886BC1 Valve Pilot Assembly Down
3 886BD1 Valve Pilot Assembly Up
4 124213 Gasket, Down Pilot
5 124214 Gasket, Up Pilot
6 606DG1 Nameplate Valve
7 141ED2 Valve Faceplate, I-3
141EC2 Valve Faceplate, I-2, I-2F
8 117327 Indicator Adjustment
9 799AB1 Strainer Assembly, Stainless Steel
10 70083 FS Washer LWHR 0.500 Z
11 70113 FS Screw CSH 0.500-13 x 2.500 Z
12 70431 FS Screw CSH 0.500-13 x 2.750 Z
13 29161 Spacer
14 396AF6 FS Screw MSPP .138 (#6) x .250 Z
15 70455 Lead Sealing
16 78150 FS Pin PDHS .350 x .500 U
