the shaft.

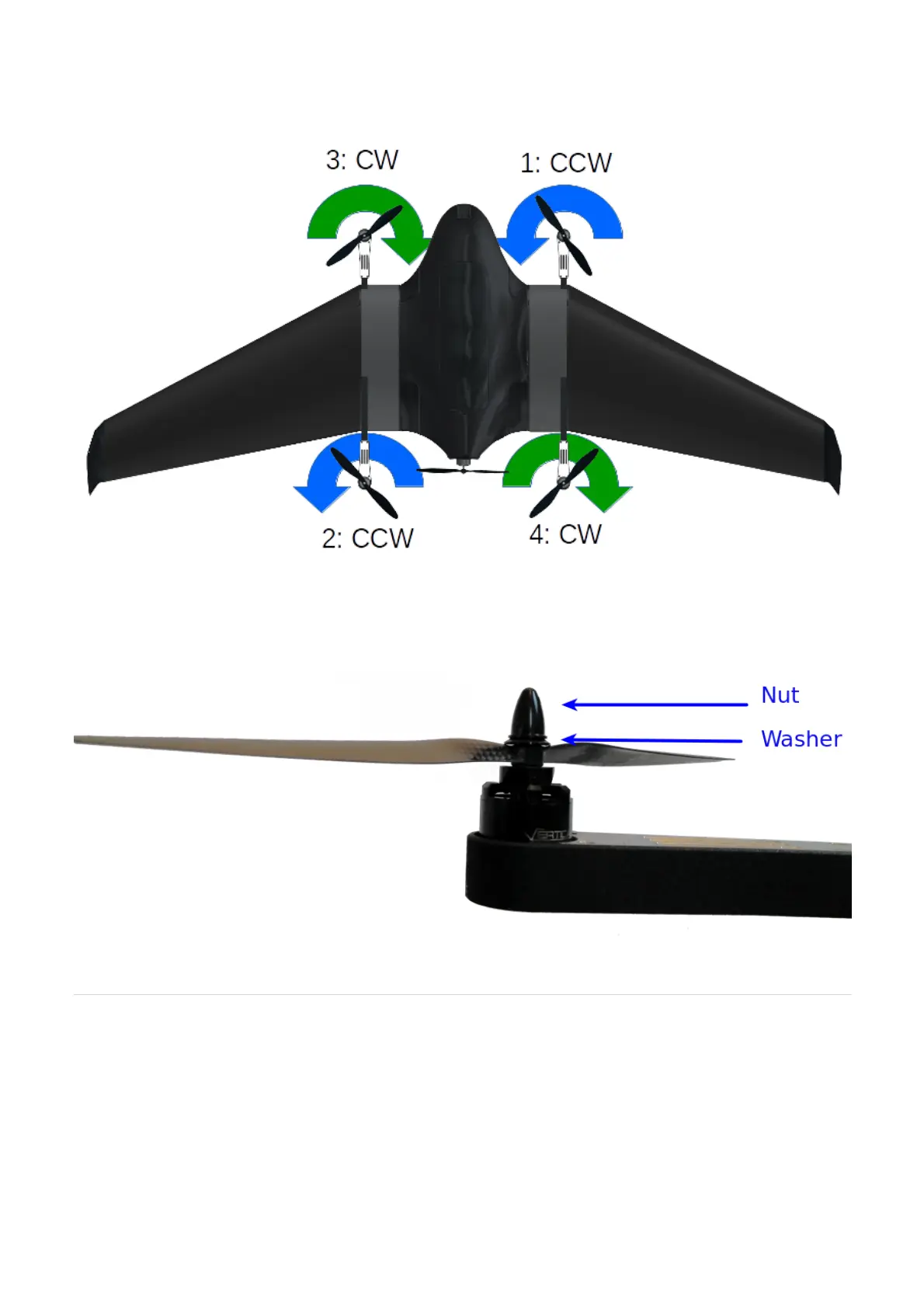

Mount the propellers in the following positions noting the direction of the propeller as indicated below:
The propellers are attached by removing the motor nut and washer, sliding the propeller on the shaft, sliding
the washer on top of the propeller and fastening the nut.
Pusher propeller assembly
The DeltaQuad pusher propeller is an APC 13x10EP propeller that contains a modified ring to mount
properly on the DeltaQuad pusher motor. Please use DeltaQuad approved and balanced pusher propellers.
The pusher propeller should be mounted so that the propeller produces thrust towards the rear, this means
that the top of the propeller (the side that has the text engraved) should face the motor as shown in the
diagram below.
