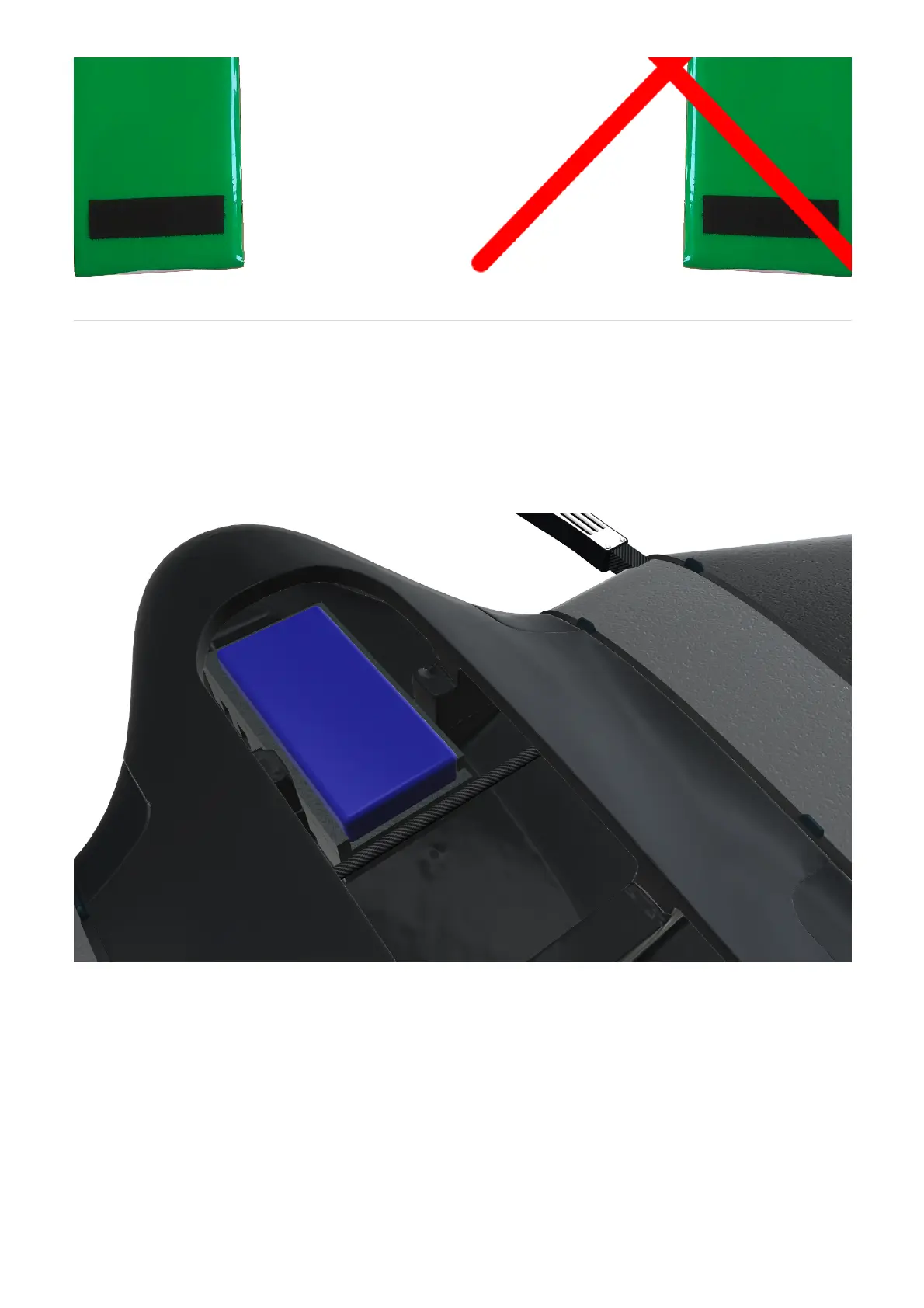

Place the LiPo inside the fuselage with the Velcro strips pointing down. Make sure to position the LiPo as far
forward as possible.
Note: Only place a LiPo before the flight, and remove the LiPo directly after the flight. Always transport the
LiPo in a safe transportation unit such as a fireproof bag or storage container.
If any modifications were made to the vehicle or a different LiPo is used other than the DeltaQuad High-
Grade LiPo battery be sure to verify the Center of Gravity (CG). The maximum rear CG is indicated by small
notches in the composite wing joiners as indicated in the image below. These notches indicate the furthest
back the CG is allowed to be. The CG is allowed to be 15mm more towards the nose, but may not be more
towards the tail.
You can verify the CG by balancing the vehicle on your fingertips. The vehicle should sit at approximately 5
degrees nose up while verifying the CG.
