For the initial hardware setup, make sure you have ample room to work. Carefully unpack all components
from the box and inspect them for any damage. If there is damage to your vehicle please document and
report this damage to Vertical Technologies. After unpacking and setting up your vehicle for the first time you
might need to perform a .sensor calibration
Inserting the carbon spars

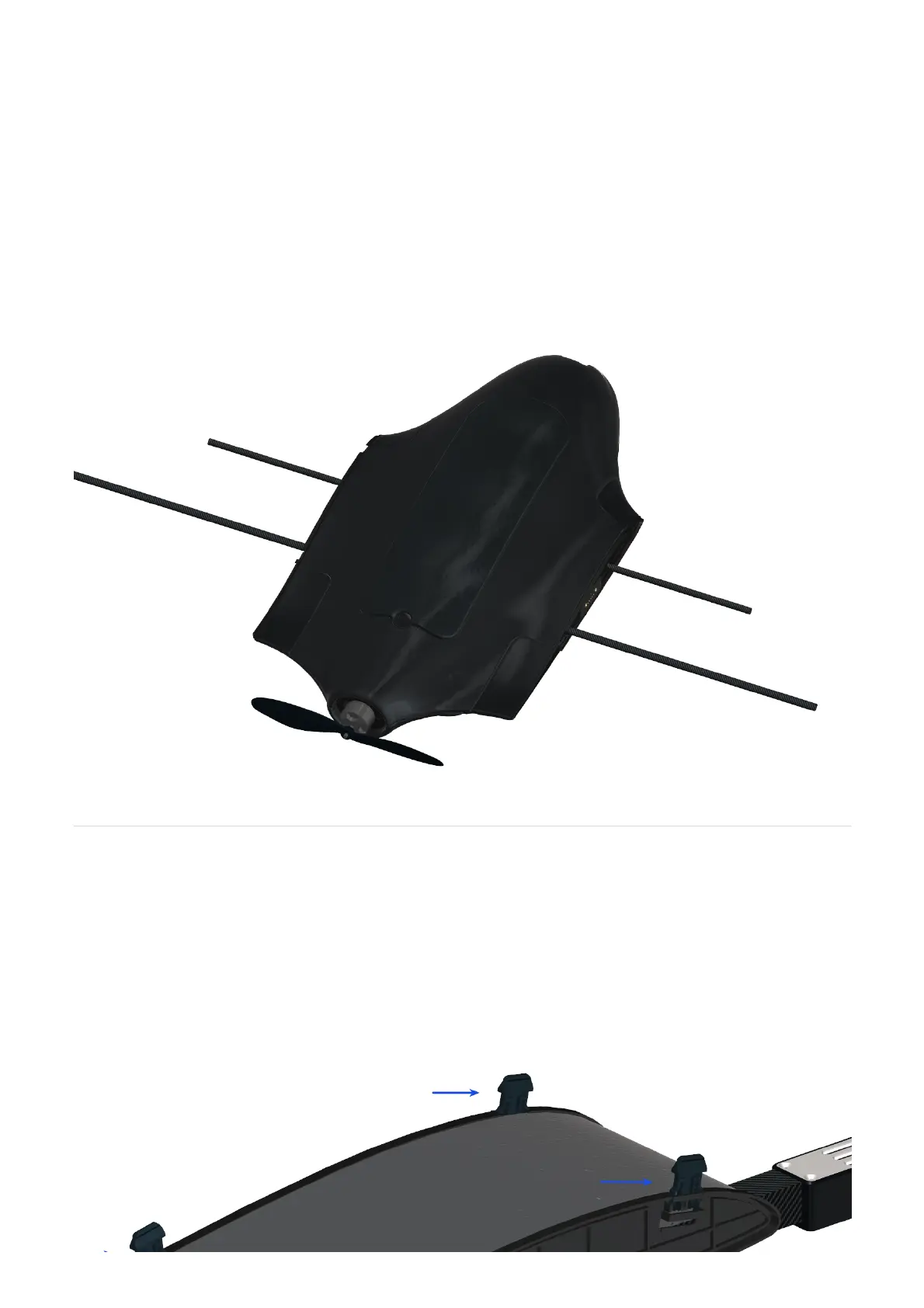

Insert the 2 carbon spars through the fuselage. The short carbon spar (850mm) is inserted in front, the long
carbon spar (1150mm) is inserted in the back. When inserting the front carbon spar, make sure that nothing
is blocking the path of the spar inside the fuselage.
Mounting the VTOL modules
The VTOL modules are indicated by the motor numbers, the module that has the motor numbers 1 and 4 is
the right side module, the module that has the motor numbers 2 and 3 is the left side module.
Before sliding on the module make sure all lock pins on the module are in the open (up) position.
