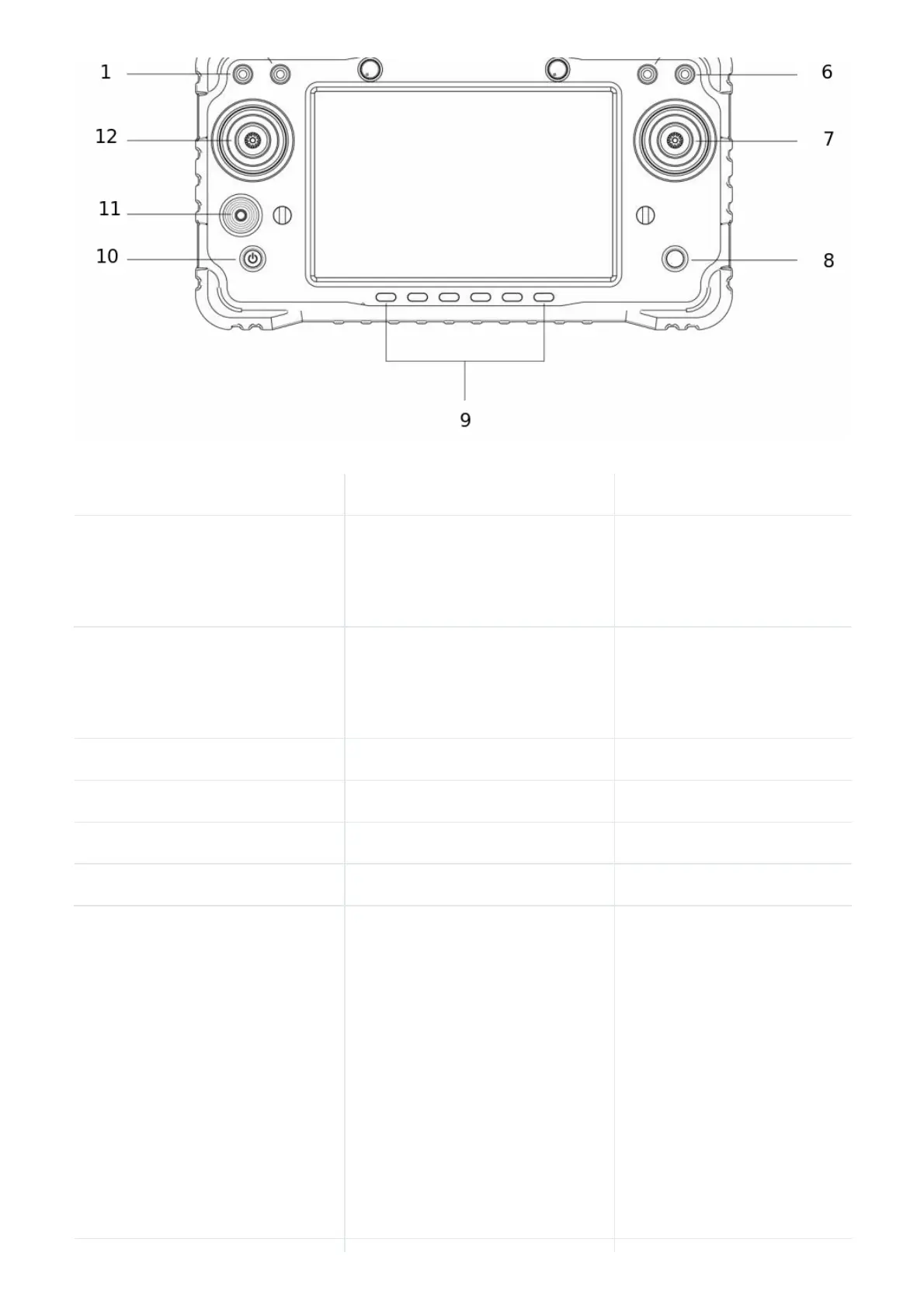

Vertical Technologies DeltaQuad V1 - Page 66

Number Type Function
1 3 position switch
UP: Position flight mode
CENTER: neutral - no function
DOWN: Mission flight mode
2 3 position switch
UP: Return flight mode
CENTER: neutral - no function
DOWN: neutral - no function
3 Dial Not assigned
4 Dial Gimbal zoom
5 3 position switch Not assigned
6 3 position switch Not assigned
7 Joystick
In hover mode
Stick up: move forward
Stick down: move backward
Stick left: move left
Stick right: move right
In fixed-wing mode
Stick up: descend (nose down)
Stick down: climb (nose up)
Stick left: bank left
Stick right: bank right
