REV : 0
REV DATE : 11/18
DPN004862
Page :1 /1

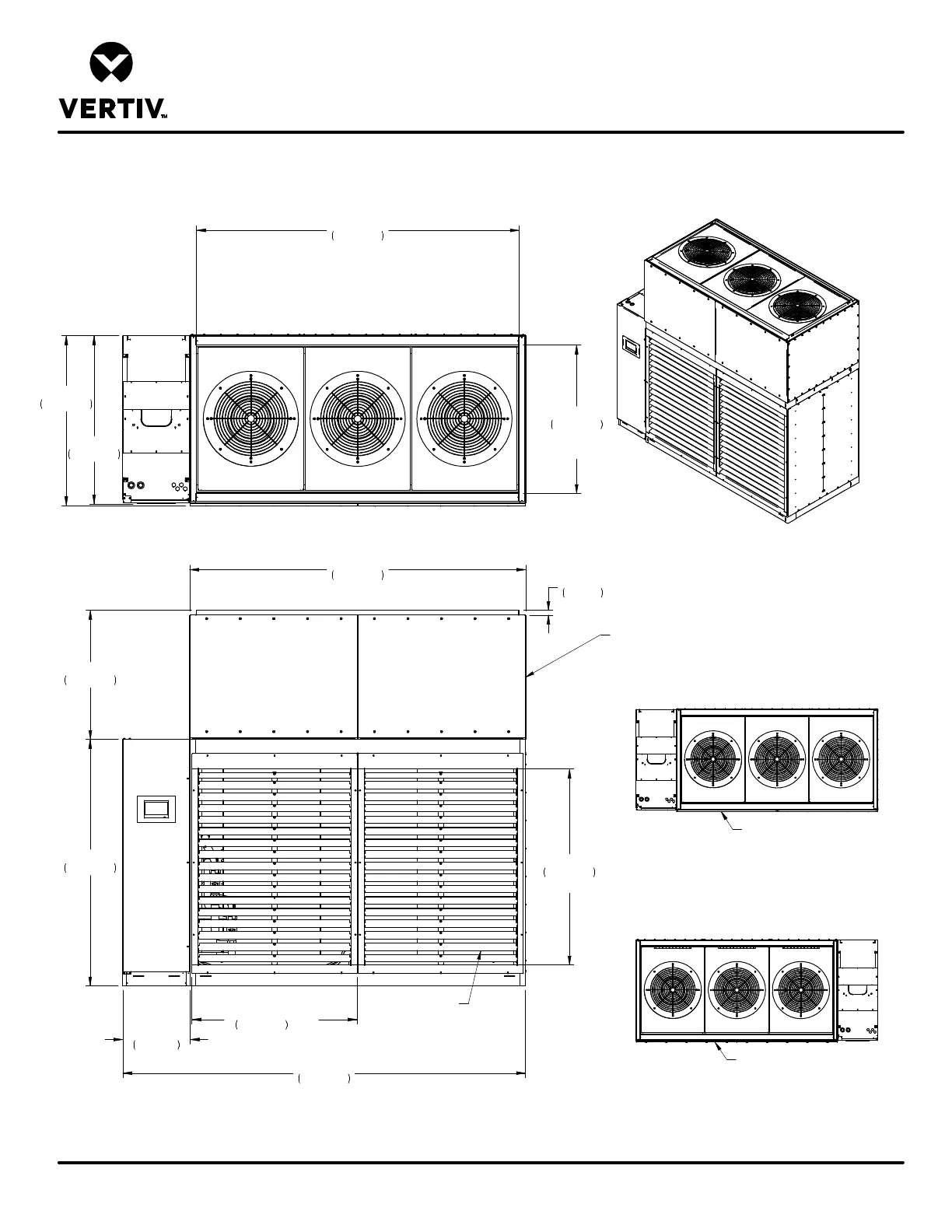

CW305, 375, 415 W/ HORIZONTAL DISCHARGE
Form No.: DPN001040_REV4
CABINET DIMENSIONAL DATA
LIEBERT CW
Louvers in
non-raised
floor application.
Front of Unit
(Data Hall Side)
For Unit Disassembly Data
Refer to DPN004868
144"
3658mm
24 1/4"
616mm
59"
1499mm
Typ.
Louver Section
70"
1779mm
Louvers
88 1/8"
2238mm
46"
1168mm
1 3/4"
44mm
Duct
Flange
120 1/8"
3050mm
Fan Plenum is shipped separately
and field installed.
Data Hall Unit configuration
Front of unit
Front of unit
Rear of Unit
(Gallery Side)
60 1/8"
1527mm
60 3/4"
1544mm
115 3/8"
2929mm
Outside of
Duct Flange
53 1/8"
1348mm
Outside of
Duct Flange
Front Left Facing Electrical Compartment
(may be ordered with
Electrical Compartment facing rear)
Front Right Facing Electrical Compartment
(may be ordered with
Electrical Compartment facing rear)
