Vertiv Liebert DA250 - Handling the Unit while Packaged; Unpacking the Unit

4.2 Handling the Unit while Packaged
If possible, transport the unit with a forklift
When using a forklift:
• Make sure that the lift has adjustable forks, and are spread to the widest allowable distance to still fit under the
skid.
• Make sure that the fork length is suitable for the skid length. Skid length is 128in. (3251mm).
• If the unit must be lifted higher than 2in.(51mm) to 4in. (102 mm), all personnel not directly involved in
moving the unit must be 20ft. (5m) or farther from the unit.
4.3 Unpacking the Unit
Remove exterior package material from around, and on top of the unit.

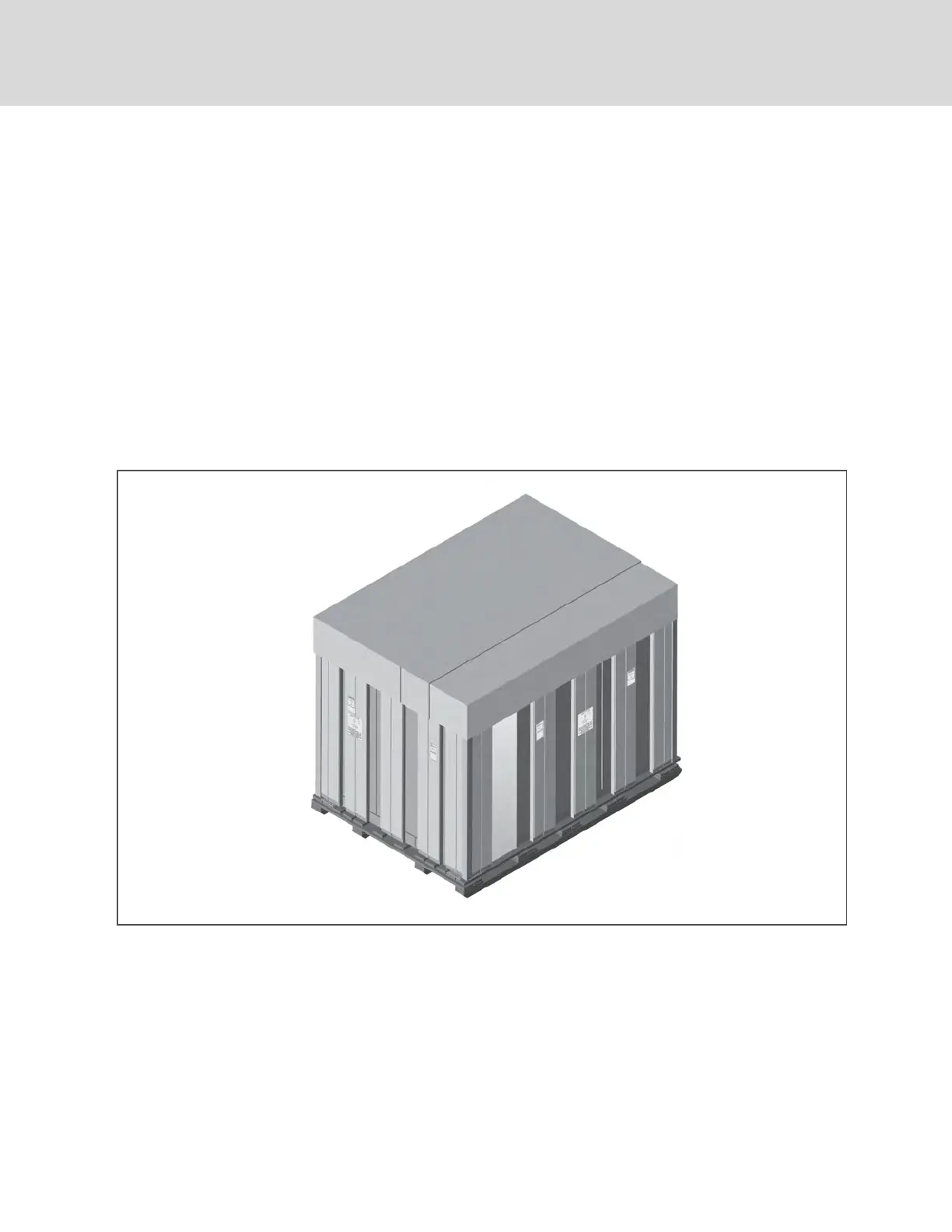

Figure 4.1 Unpacking the Unit
Vertiv | Liebert® DSE Thermal Management System Installer/User Guide
16
