• Avoid running the cables by devices that may introduce noise, such as machines, fluorescent
lights, and electronics.
• Avoid stretching cables.
• Keep CANbus cables at least 12 inches (305mm) from high-voltage sources, including wiring.

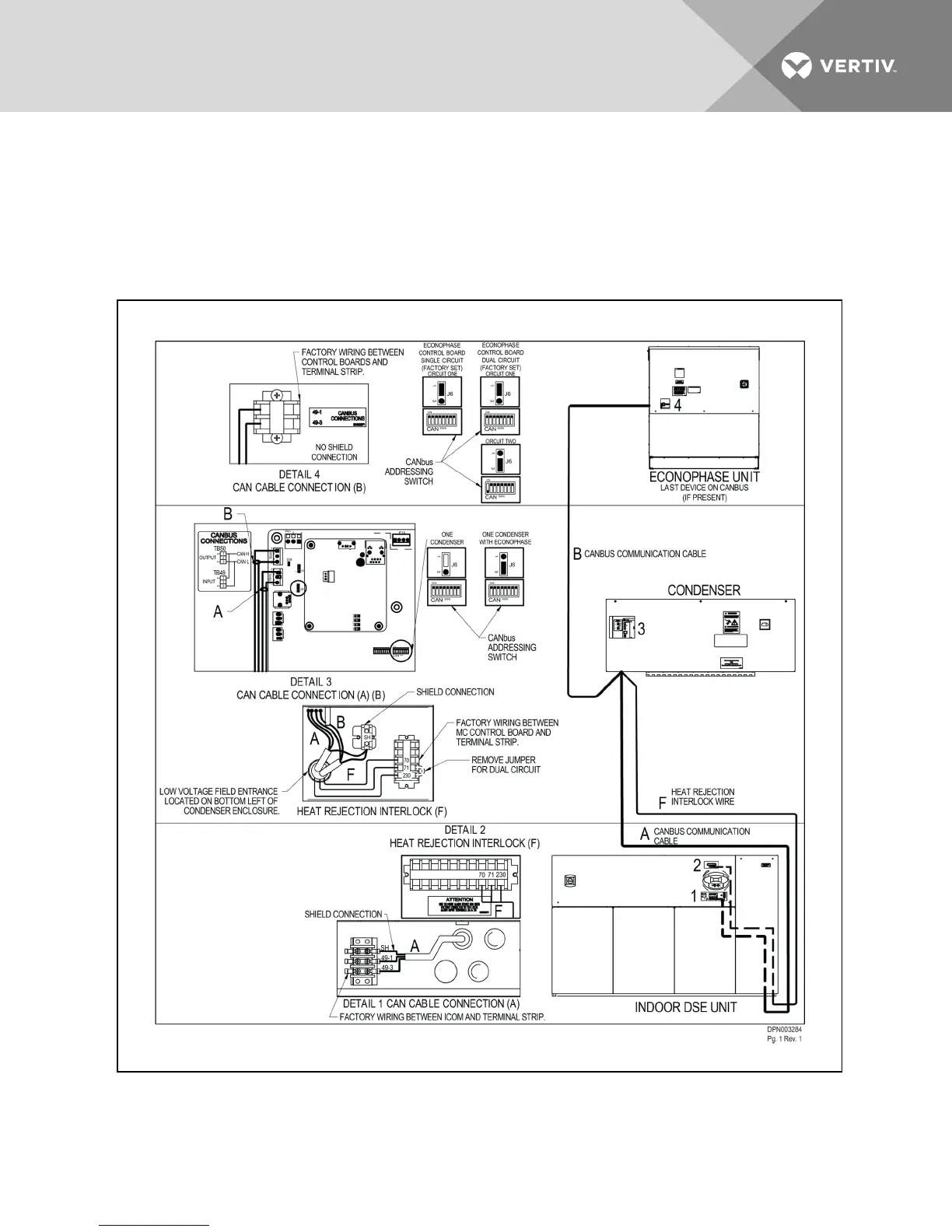

Figure 4.2 CANbus communication and interlock connections
betweenaLiebertDSE,onepremiumLiebert MC and a Liebert EconoPhase
CANbus Cable: A, B
Interlock Wire: F
Vertiv | Liebert® MC™ Installer/User Guide | 44
