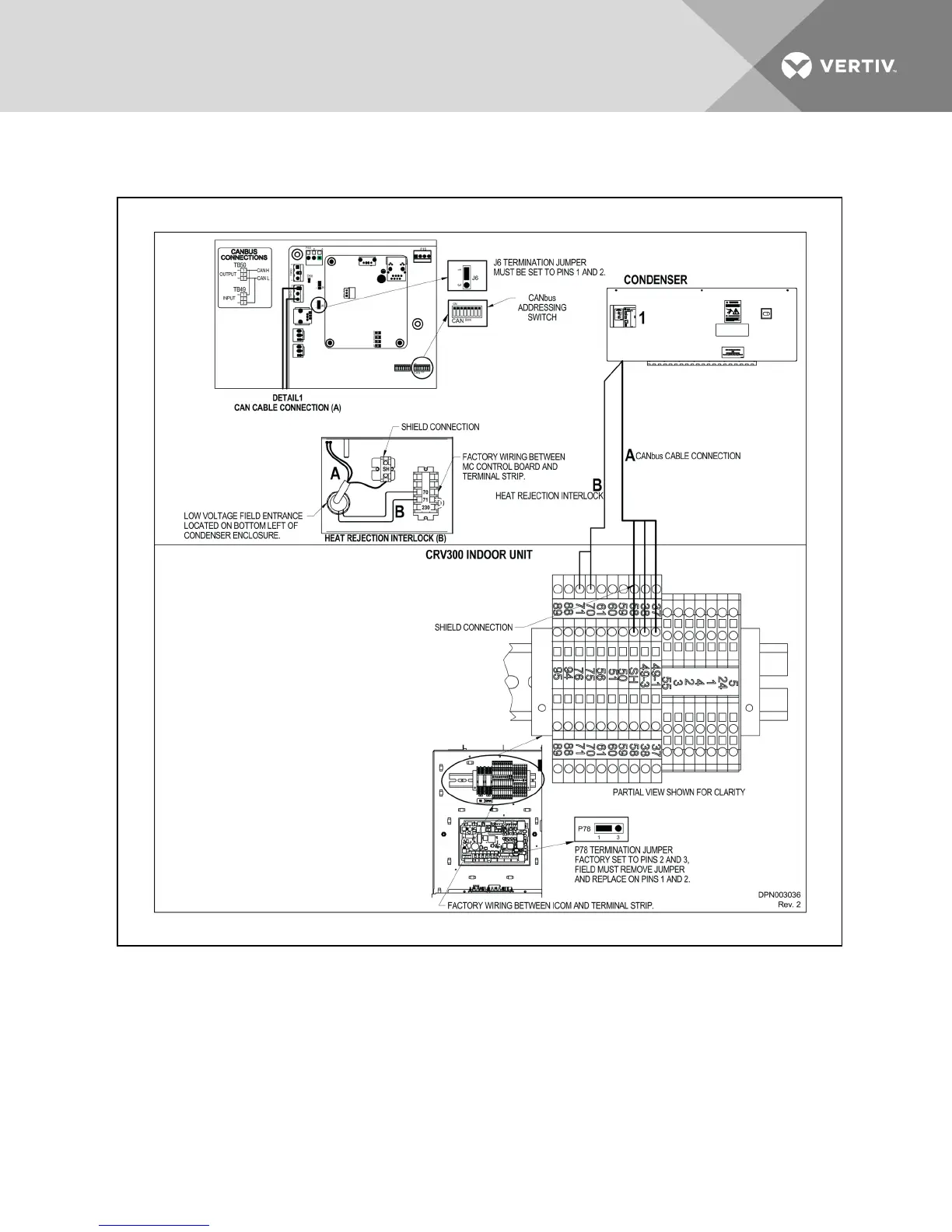

Figure 4.6 CANbus communications and interlock connection between Liebert CRV 300mm (12in.)
andaLiebert MC premium condenser
CANbus Cable: A
Interlock Wire: B
See Low-voltage Control Wiring—CANbus Communication andInterlock Connections on page43 for
cable and wire requirements.
Vertiv | Liebert® MC™ Installer/User Guide | 48
