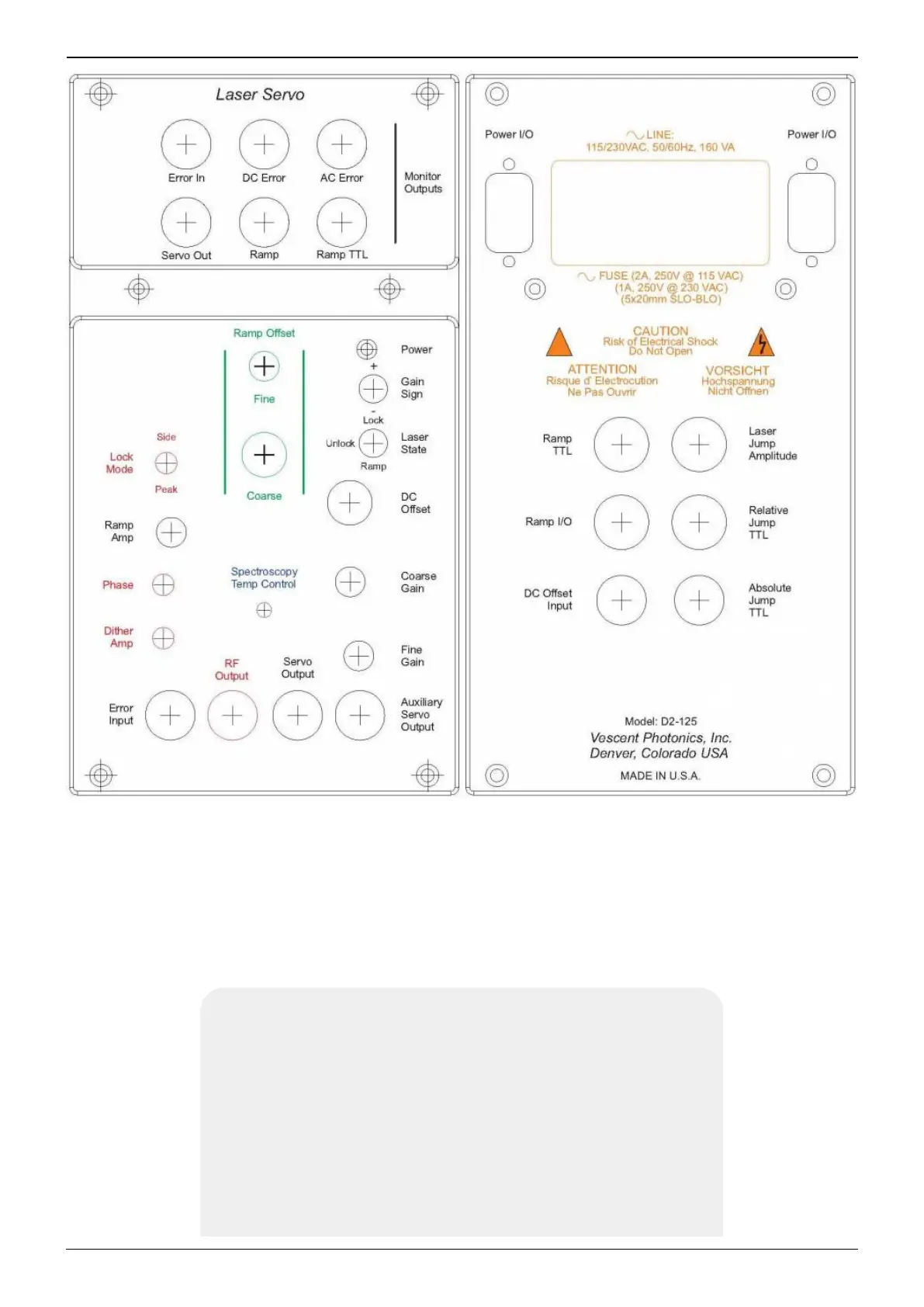

Fig. 2: Schematic drawing of the front and back panels of the D2-125
Monitor Section
Located at the top of the front panel, the monitor section contains 6 BNC outputs for monitoring
various signals used by the Laser Servo. The logic of the monitors is shown in figure 3. Open a pdf of
this image .
