Temperature Cable (6ft)
VPN00463 SMA-to-SMA Laser Current
Cable (6ft)
VPN00457 Trimpot tweaker (large)
VPN00458 Trimpot tweaker (small)
VPN00456 DB9 Power Cable (1ft)

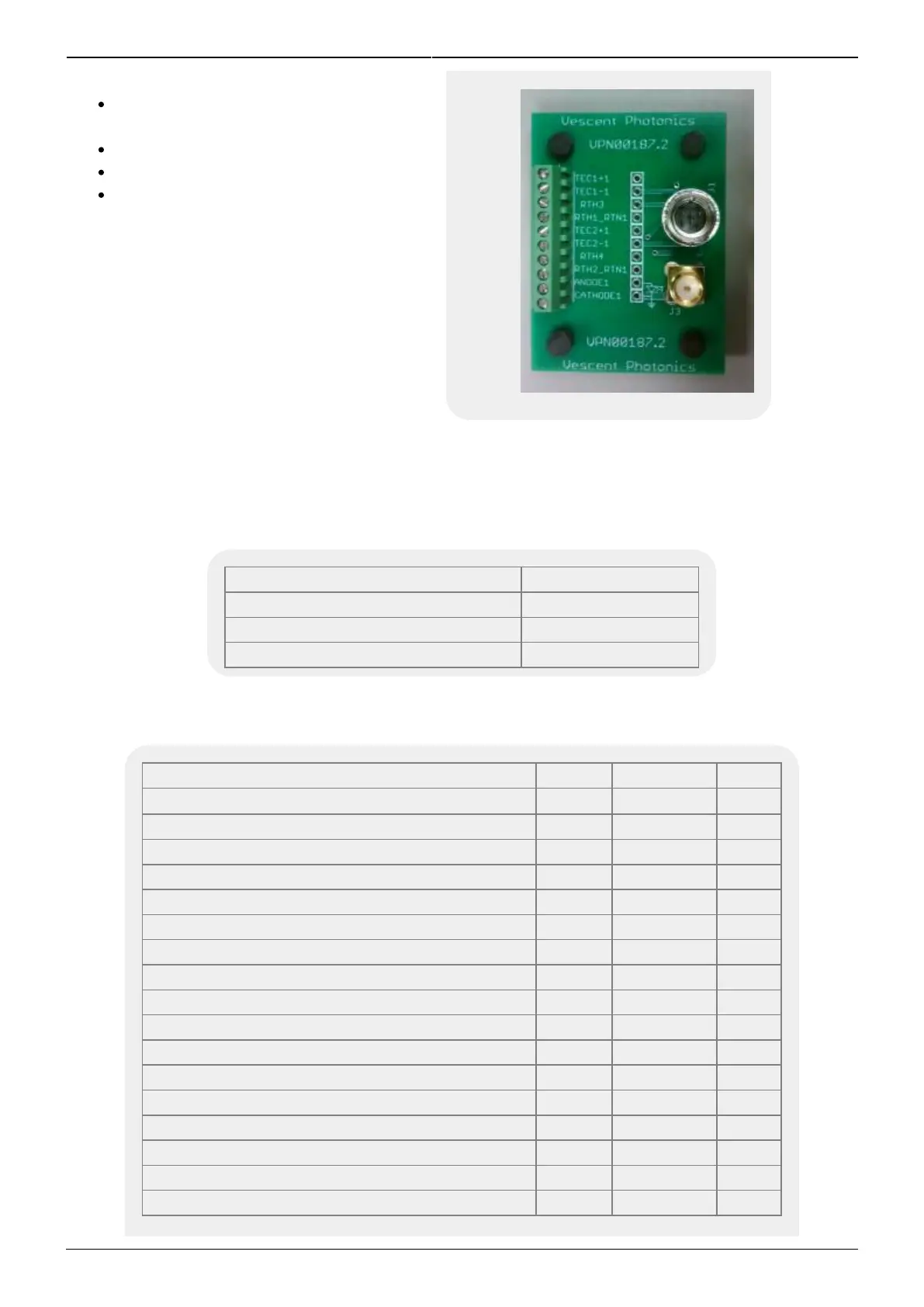

Fig. 1:
D2-007
Breako
ut
board.
Absolute Maximum Ratings
Note: All modules designed to be operated in laboratory environment
Parameter Rating
Environmental Temperature >15°C and <30°C
Environmental Humidity <60%
Environmental Dew Points <15°C
Specifications
D2-105 D2-105-500 Units
Current Source
3)
Current range 0-200 0-500 mA
Current noise density <100 <200 pA /√Hz
RMS Noise (10Hz - 100kHz) <50 <100 nA
RMS Noise (10Hz - 1MHz) <100 <150 nA
RMS Noise (10Hz - 10MHz) <300 <500 nA
Monitor Resolution (Display) 0.1 1 mA
Absolute accuracy 2 2 %
Temperature coefficient <1 <5 μA/°C
Current Servo Input
Input impedance 1000 1000 Ω
Bandwidth >10 >10 MHz
Modulation coefficient 1 1 mA/V
Servo Input Modulation Range ±10 ±10 V
RF Input Bandwidth 0.5 - TBD 0.5 - TBD MHz
Temperature Servo Input
Input impedance 100 100 kΩ
