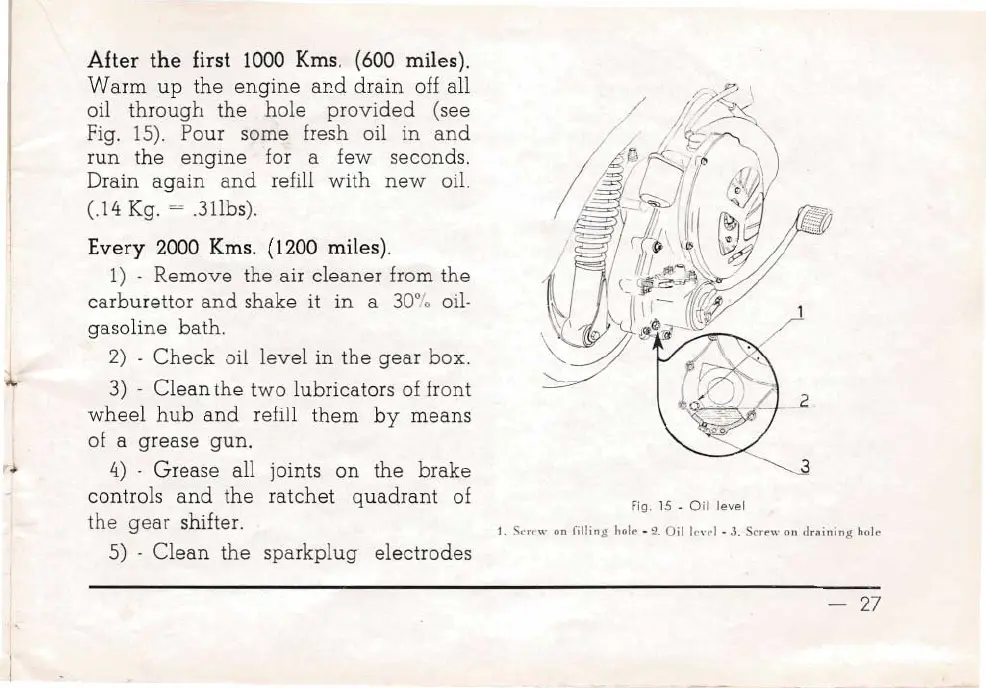

After the first 1000 Kms. (600 miles).
Warm up the engine and drain off all
oil through the hole provided (see
Fig. 15). Pour some fresh oil in and
run the engine for a few seconds.
Drain again and refill with new oil.
(.14 Kg. = .31lbs).
Every 2000 Kms. (1200 miles).
1) - Remove the air cleaner from the
carburettor and shake it in a 30% oil-
gasoline bath.
2) - Check oil level in the gear box.
3) - Clean the two lubricators of front
wheel hub and refill them by means
of a grease gun.
4) - Grease all joints on the brake
controls and the ratchet quadrant of
the gear shifter.
5) - Clean the sparkplug electrodes
Fig.15 - Oil level
1. Sac,," OD Cilling hole - 2. Oillcvd - 3. Screw on draining hole
- 27
