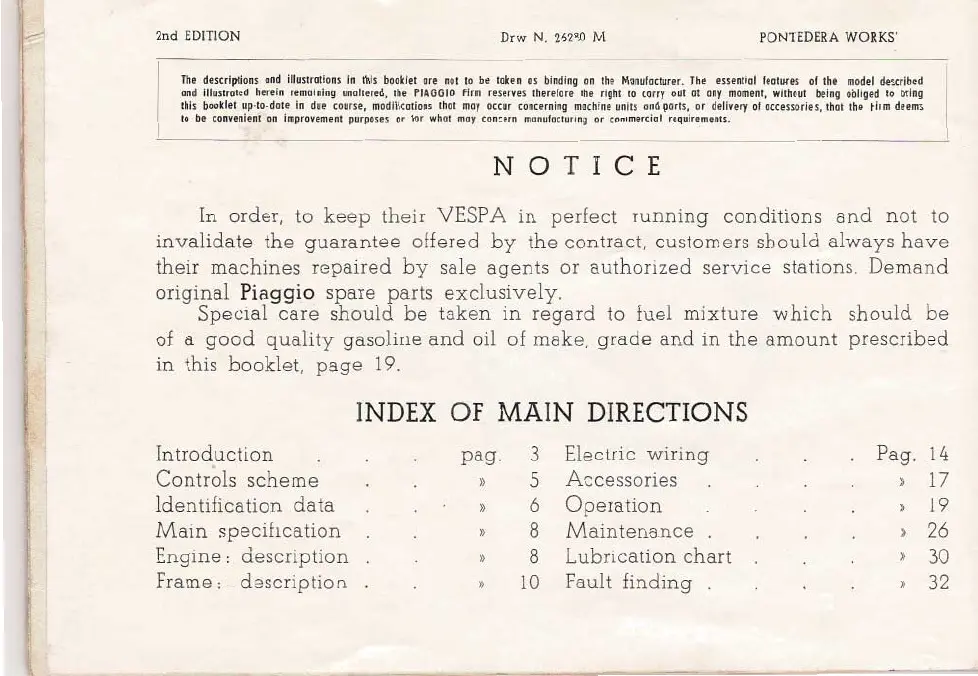

2nd EDITION
Drw N. 2~2~OM
PONTEDERA WORKS'
The descrlpllons ond lIIostrollons In this booklet ore not 10 be loken os binding on the Monoloctorer. The essenllol leotores 01 Ihe model described
and Illustrated herein remaining unaltered, the rlAGGIO firm reserves therefore the right 10 corry out at any moment, without being obliged 10 bring
this booklet up-tD-dote In due course, modUicotlonsthot moy occur concerningmachineunits and ports. or delivery 0'accessories,thotthe thm deems
to be convenient on Improvement purposes or for what may con:ern manufacturingor commercial requirements.
NOTICE
In order, to keep their VESPA in perfect running conditions and not to
invalidate the guarantee offered by the contract, customers should always have
their machines repaired by sale agents or authorized service stations. Demand
original Piagg~o spare parts exclusively.
Special care should be taken in regard to fuel mixture which should be
of a good quality gasoline and oil of make. grade and in the amount prescribed
in this booklet, page 19.
INDEX OF MAIN DIRECTIONS
Introduction
Controls scheme
Identification data
Main specifIcation
Engine: description
Frame: d9scription
pag. 3
5
6
8
8
10
Electric wiring
Accessories
Operation
Maintenance
Lubrication chart
Fault finding .
Pag. 14
17
19
}} 26
30
32
