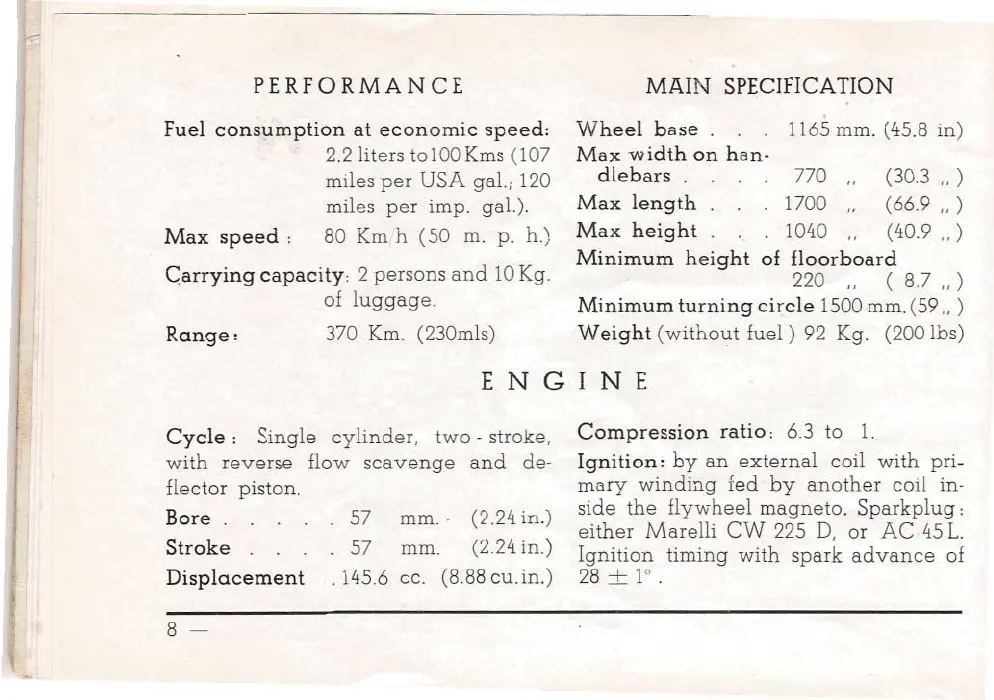

PERFORMANCE
Fuel consumption at economic speed:
2.2liters to100Kms (107
miles per USA gal.; 120
miles per imp. gal.).
Max speed: 80 Km h (50 m. p. h.)
Garrying capacity: 2 persons and 10Kg.
of luggage.
Range: 370 Km. (230mls)
MAIN SPECIFICATION
Wheel base. . . 1165mm. (45.8 in)
Max width on han-
dlebars . 770 .. (30.3.. )
Max length. . . 1700 " (66.9.. )
Max height. . . 10qO .. (40.9.. )
Minimum height of floorboard
220 .. (8.7" )
Minimum turning circle 1500 mm. (59" )
Weight (without fuel) 92 Kg. (200Ibs)
ENGINE
Cycle: Single cylinder, two - stroke,
with reverse flow scavenge and de-
flector piston.
Bore.
Stroke . .
Displacement
. 57 mm.' (2.2qin.)
. 57 mm. (2.2qin.)
.145.6 cc. (8.88cu.in.)
Compression ratio: 6.3 to 1.
Ignition: by an external coil with pri-
mary winding fed by another coil in-
side the flywheel magneto. Sparkplug:
either Marelli CW 225 D, or AC q5 L.
Ignition timing with spark advance of
28 + 10.
8-
