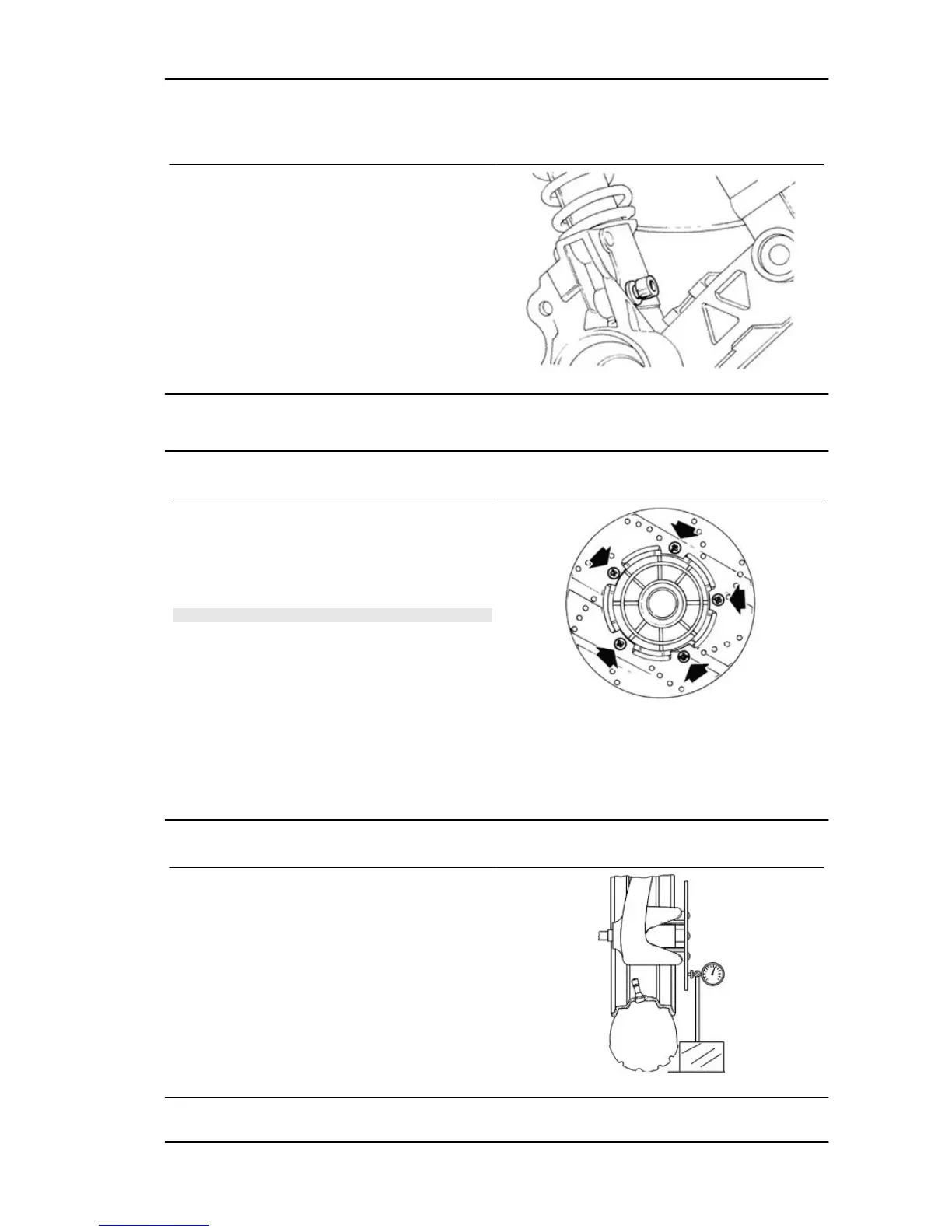

Refitting
-Perform the disassembly steps in reverse order.
-Fit a new O-ring.
-Torque the two screws to the prescribed value.
- Fit the spacer and O-ring on the wheel spindle.
Locking torques (N*m)
Tightening torque 20 ÷ 25
Front brake disc
Removal
- Should the brake disc be replaced, when refitting
the hub, apply recommended product on the fixing
bolts.
Tighten to the specified torque.
N.B.
THE SURFACE OF THE DISC WITH THE STAMPED AR-
ROW INDICATING THE DIRECTION OF ROTATION MUST
FACE THE SHOCK ABSORBER.
Recommended products
Loctite 242 product description
Apply LOCTITE medium type 242 threadlock
Locking torques (N*m)
tightening torque 5 ÷ 6.5 Nm
Disc Inspection
Specific tooling
020335Y Magnetic support for dial gauge
Characteristic
Max oscillation allowed
0.1 mm.
ET4 50 Braking system
BRAK SYS - 133
