STEP 3: prepare ductwork & single outlet
(skip this step if you already have it)

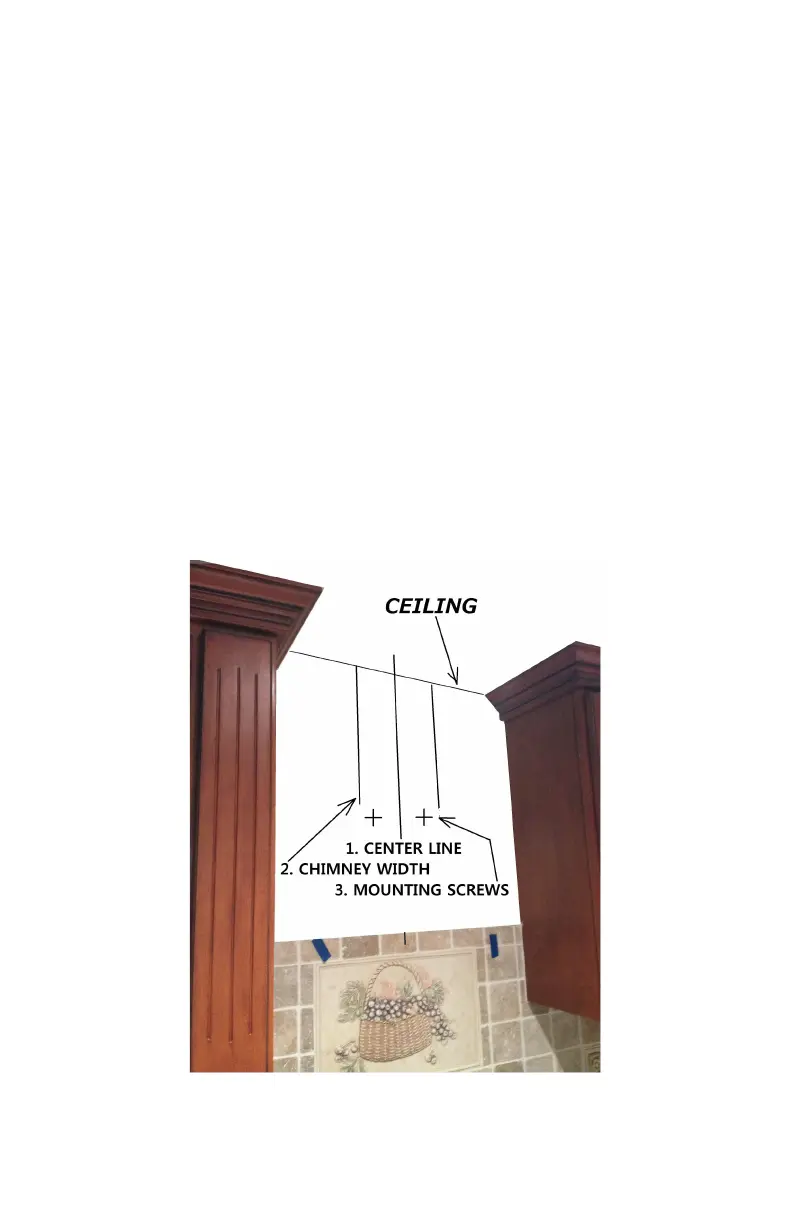

Have 15amp, 120V, 60Hz, single outlet anywhere inside the
chimney width lines (make sure at least 2 inches below ceiling
line for ceiling bracket mount)
Have 6 inches diameter ductwork hanging down from ceiling
to the mark of mounting screws. (2 inches away from wall is
recommended since you need room for plug in and out)
hole
HEIGHT: is dimension from cook top to bottom of range hood
(vary from 24” to 31”) plus from bottom of range hood to
mounting bracket hole.
18
