Installation

STEP 1: (OPTIONAL ONLY) Protect the

cook top & create work station

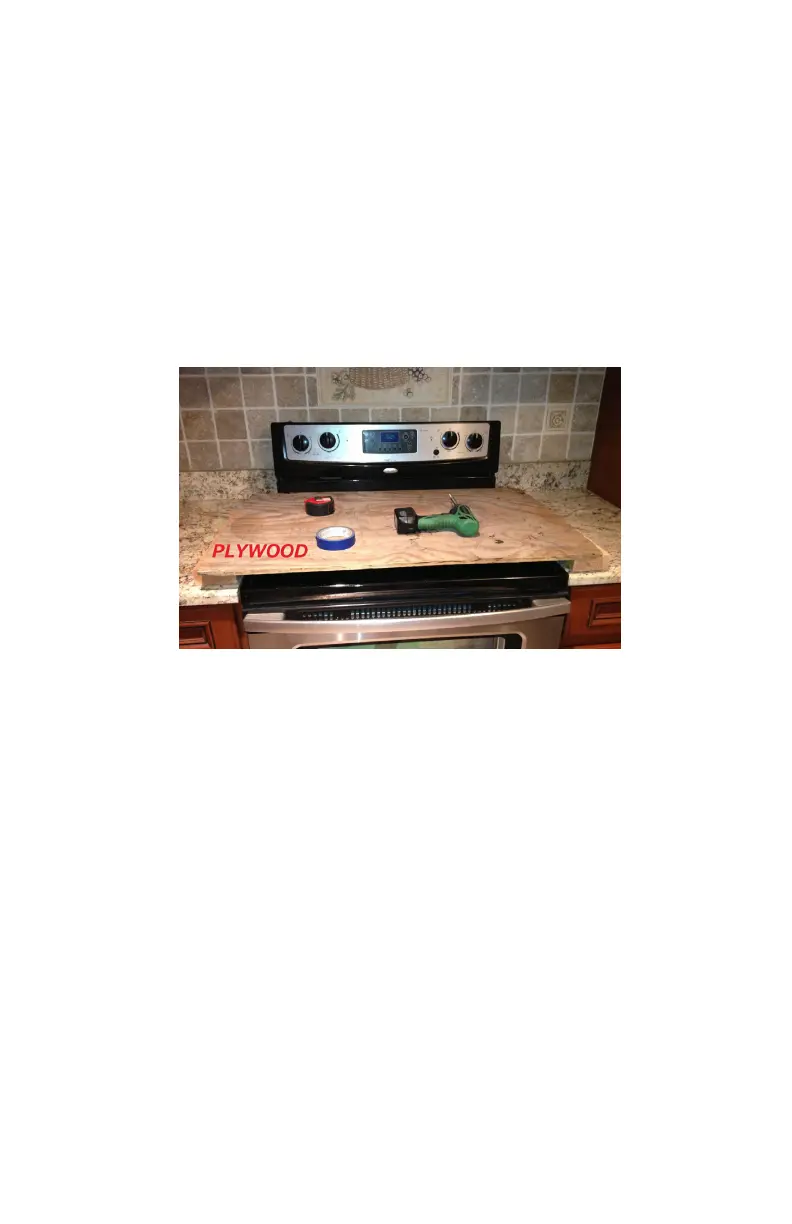

Have 2 piece of wood stub about 2” x 4” x 20” on both sides of

stove and a plywood on top of them to protect cook top or stove

from damage or dirt. This plywood will also create a comfortable

work station for easy to install.

STEP 2: Marking on the wall

• Center: is center of cook top or stove

• Chimney width: is the width of the chimney (Vary in each

model)

• Mounting screws: Is where the hood body will be handing

from.

Please assemble mounting bracket to hood body rst so you can

nd exact dimension.

**MOUNT SCREW HOLE DIMENSIONS:

WIDTH: is dimension from center to center of mounting bracket
