CHAP. 3 - RECEIVING THE OVEN
3.1 - DESPATCH OF THE OVEN (see FIG. n°4)
The oven is accurately packed and then despatched from our warehouses.
The package includes:
a) a solid cardboard box on a pallet;
b) the Oven;
c) this manual;
d) EC conformity declaration.
FIG. n°4 - Package description
3.2 - PACKAGE CHECK UPON RECEIPT
Upon receipt of the appliance if the external packaging shows no signs of damage, open and
check that there are no missing parts (refer to FIG. n.4) If upon receipt of the appliance the
packaging shows signs of damage or seems to have been dropped or hit, inform the carrier of
the damage and within three days of the date of delivery provided in the transport document,
send a report detailing the damage to the appliance.
3.3 - PACKAGING DISPOSAL
The components of the packaging (cardboard, pallet, plastic straps and polyurethane foam) are
urban solid waste; therefore they can be easily disposed of.
If the Oven has to be installed in countries where specific regulations are in force, packaging
must be disposed of in compliance with such regulations.
CHAP. 4 - INSTALLATION
4.1 - OVEN LOCATION
Once having removed the Oven from its packaging, remove the protective adhesive film
affixed to the outer casing of the oven. This film must always be removed before using the
oven (check that no plastic film is left on the appliance and do not use abrasive substances to
remove the plastic film). Check that the counter top where the appliance is to be positioned is
large enough (refer to technical specifications pg.7), level, robust, dry, stable and resistant to
high temperatures.
Make sure the appliance is positioned at least 10 cm from walls which have to be resistant to
high temperatures
. Connect the chimney ref 6, underlined at page no 6 of this manual,
to the chimney flue for the smoke evacuation.
a)
b)
c)
d)
13

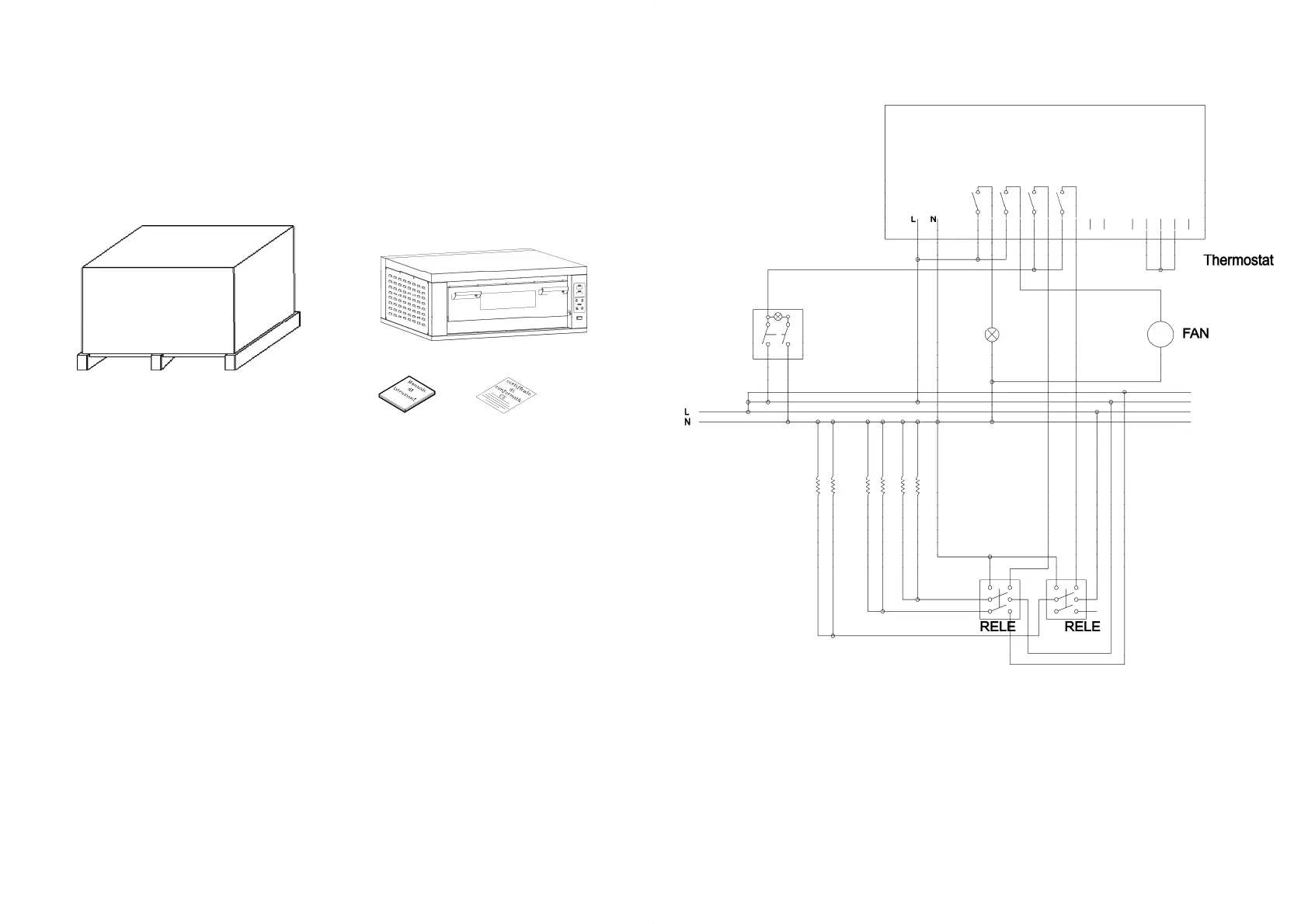

9 - WIRING DIAGRAM
9.1 -
wiring diagram of the Oven 70x70 - 1ph 230V.
