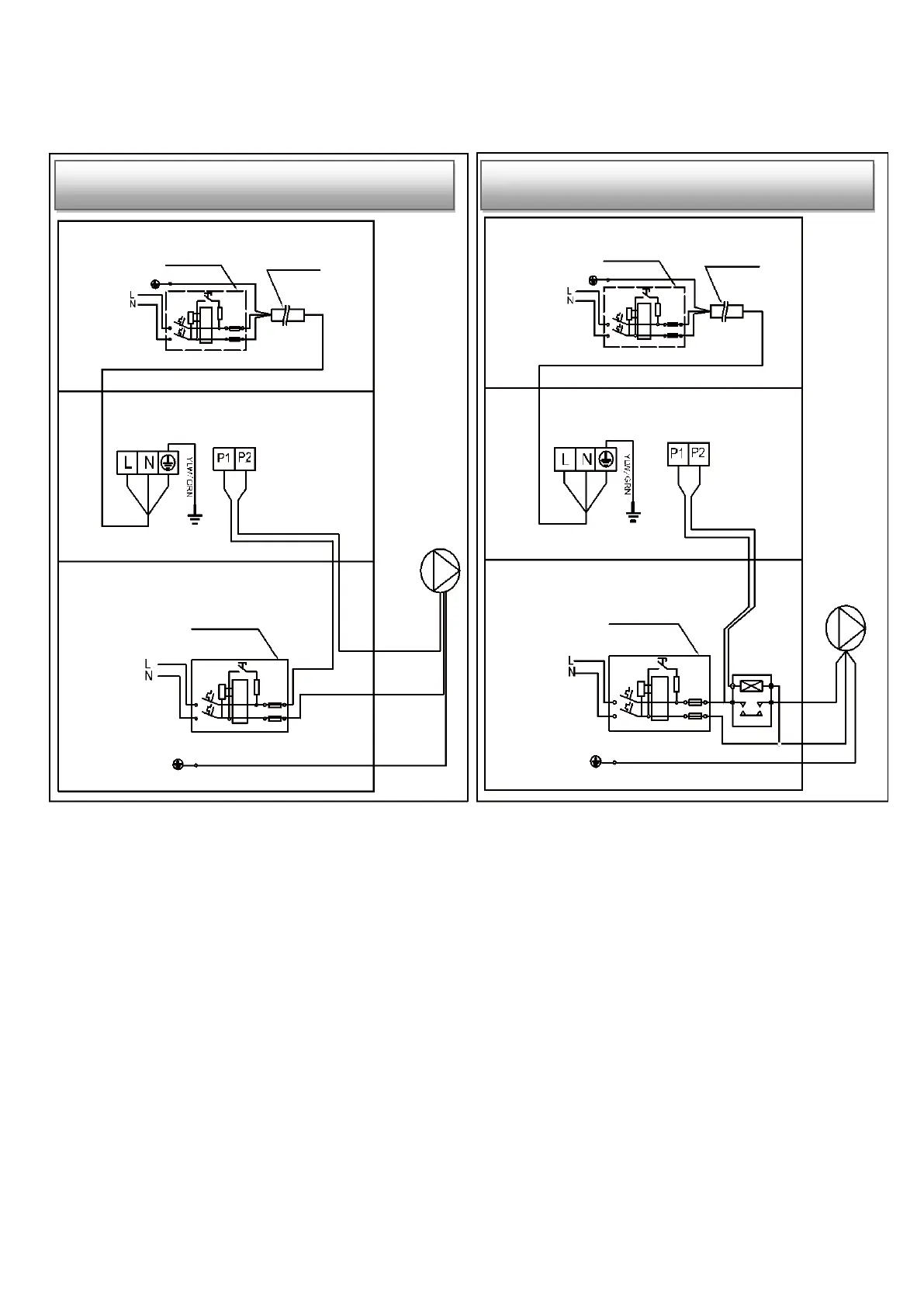

Apéndice 1: Diagrama de cableado de prioridad del calentamiento (opcional)
Para la bomba de agua: Tensión 230V, Capacidad 500W
Para la bomba de agua: Tensión 230V, Capacidad >500W
Puesta a tierra
Puesta a tierra
Disyuntor/fusible
(Preparado por el cliente)
Cable de alimentación
Bomba de agua
Alimentación
230V~/50Hz
Puesta a tierra
Disyuntor/fusible
(Preparado por el cliente)
Bomba de agua
Alimentación
230V~/50Hz
Puesta a tierra
Bomba de agua
Bomba de agua
Contactor
Alimentación
230V~/50Hz
Disyuntor/fusible
(Preparado por el cliente)
Cable de alimentación
Alimentación
230V~/50Hz
Disyuntor/fusible
(Preparado por el cliente)
