U-Joint Assembly and Disassembly The basic C-frame press is used to
service the U-Joints on most cars and light trucks. The U-Joints can be
serviced either on or off the vehicle.
Disassembly
1. Remove any external and/or internal lock rings.

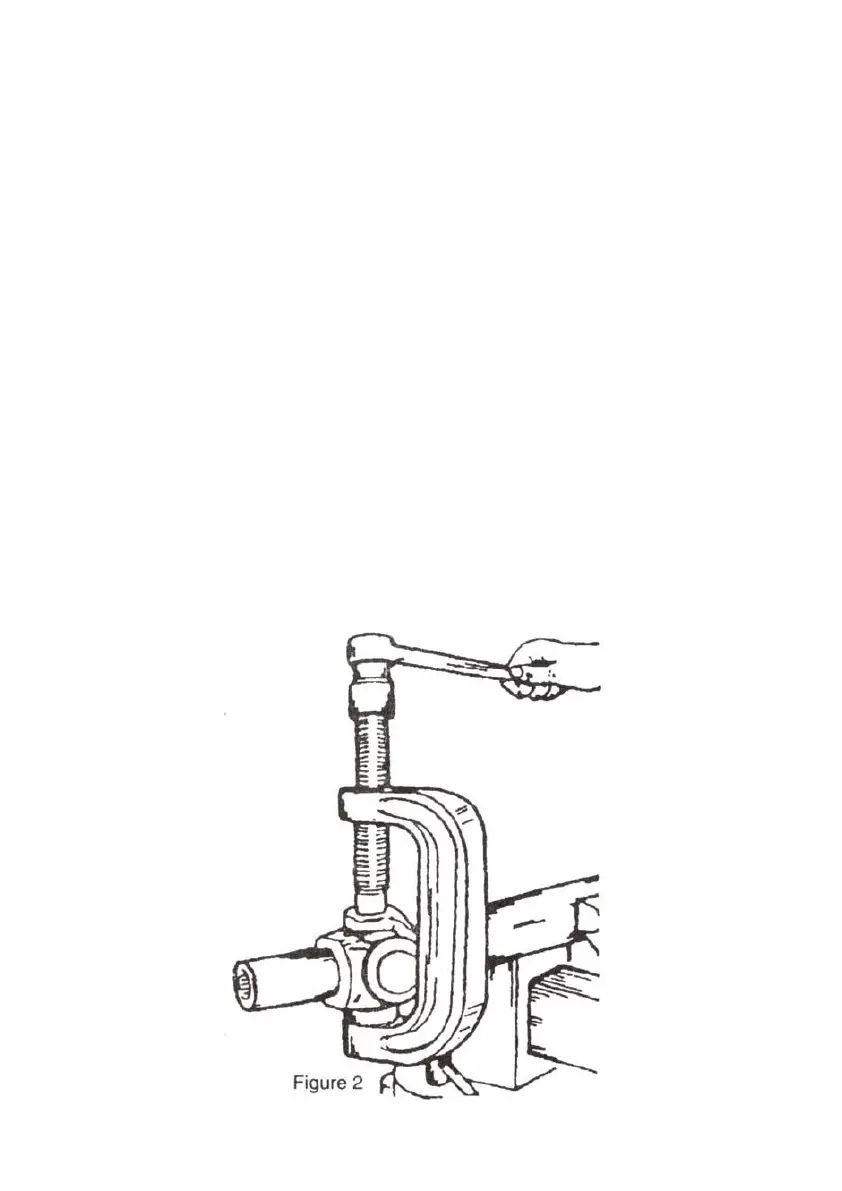

2. Position the C-frame press around the drive shaft yoke, and tighten the
forcing screw until the first bearing is removed.
3. Reposition the C-frame and remove the second bearing.
Assembly
1.
Clean all dirt and oil from the yoke area.
2.
Align the replacement bearing and C-frame press as straight as
possible over the yoke. Press the replacement bearing into the yoke,
and reassemble the external / internal lock ring.
3.
Reposition the C-frame press and second replacement bearing as
straight as possible over the yoke, and press the bearing into the
yoke. Reassemble the external / internal lock ring.
