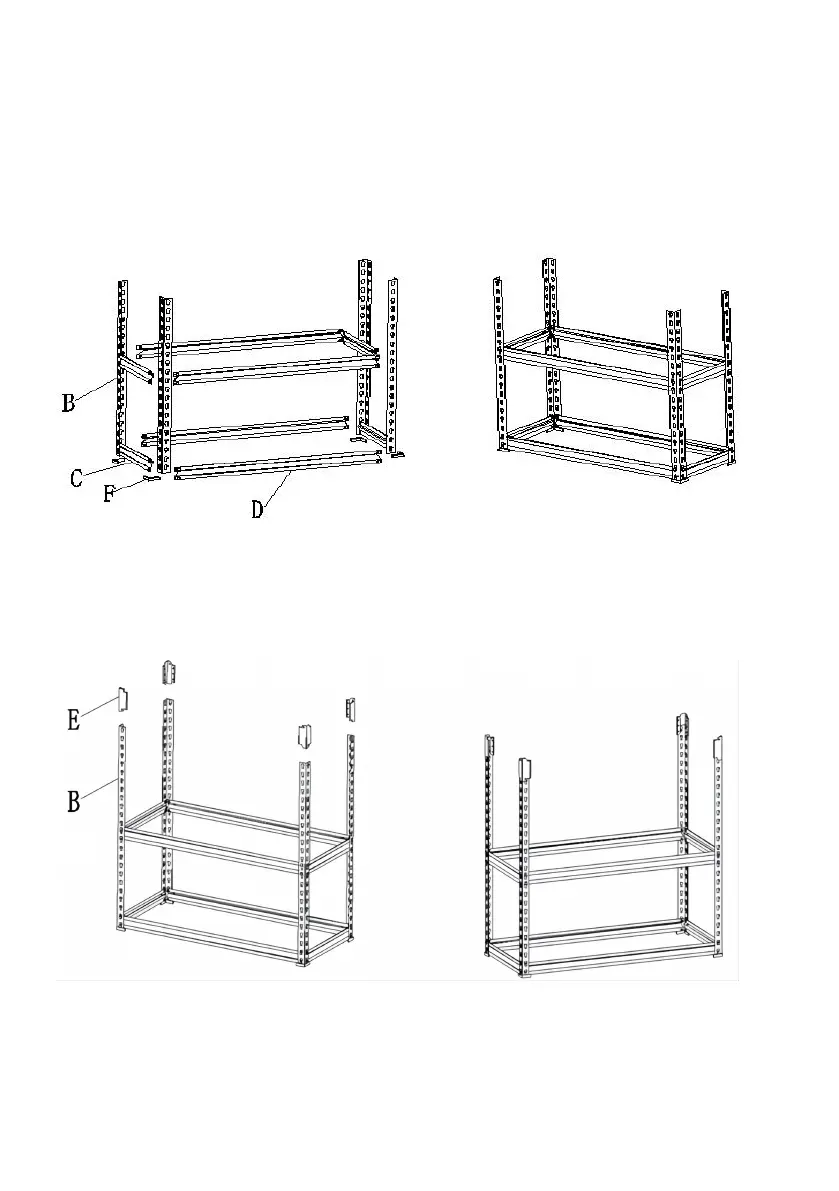

Step 2: Short and Long Beam Assembly
1. Align short beams (C) & top shelf long beam (D) to aligned notches between
four upright posts (B).
2. Once in position, tap firmly using a rubber mallet.
3. Repeat process for opposite side, ensuring both ends
are set at the same height.
Step 3: Fixings Assembly
1· Fix fixings(E) at the top of the upright post(B), and tap down to the end.
To Next Page
