- 12 -

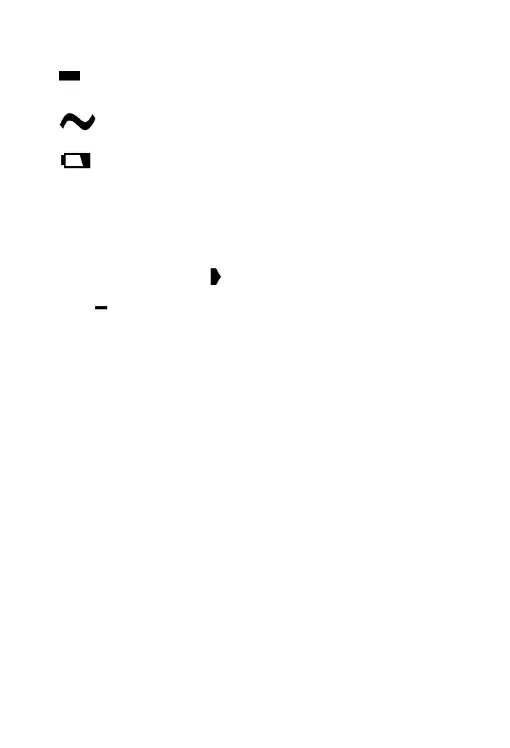

14. ..... Negative sign
15. ..... AC
16. ..... The batteries are low and must be replaced immediately.
17. Bar Graph
The bar graph on the top of the LCD is like the needle on an analog meter.
It has an overload indicator ( ) on its right and a negative polarity
indicator ( ) on its left. The number of lit segments indicates the
measured value and is relative to the full-scale value of the selected range.
In the 600V range, for example, the major divisions on the scale represent
0, 100, 200, 300, 400, 500 and 600V. An input of -100V lights the negative
sign and the segments up to the " 10 " on the scale.
Note:
In frequency, duty cycle, temperature and capacitance measurement
functions and non-contact ac voltage detection function, the bar graph is
turned off.
