2. Increasing the transmission level from level 1 to level 3 with the " " button
increases the detecting distance of the receiver by a factor of about 4.
3. When connecting the transmitter in a live circuit, adhere to local and national
safety codes. To avoid electric shock, do not touch any naked conductor with
hand or skin.

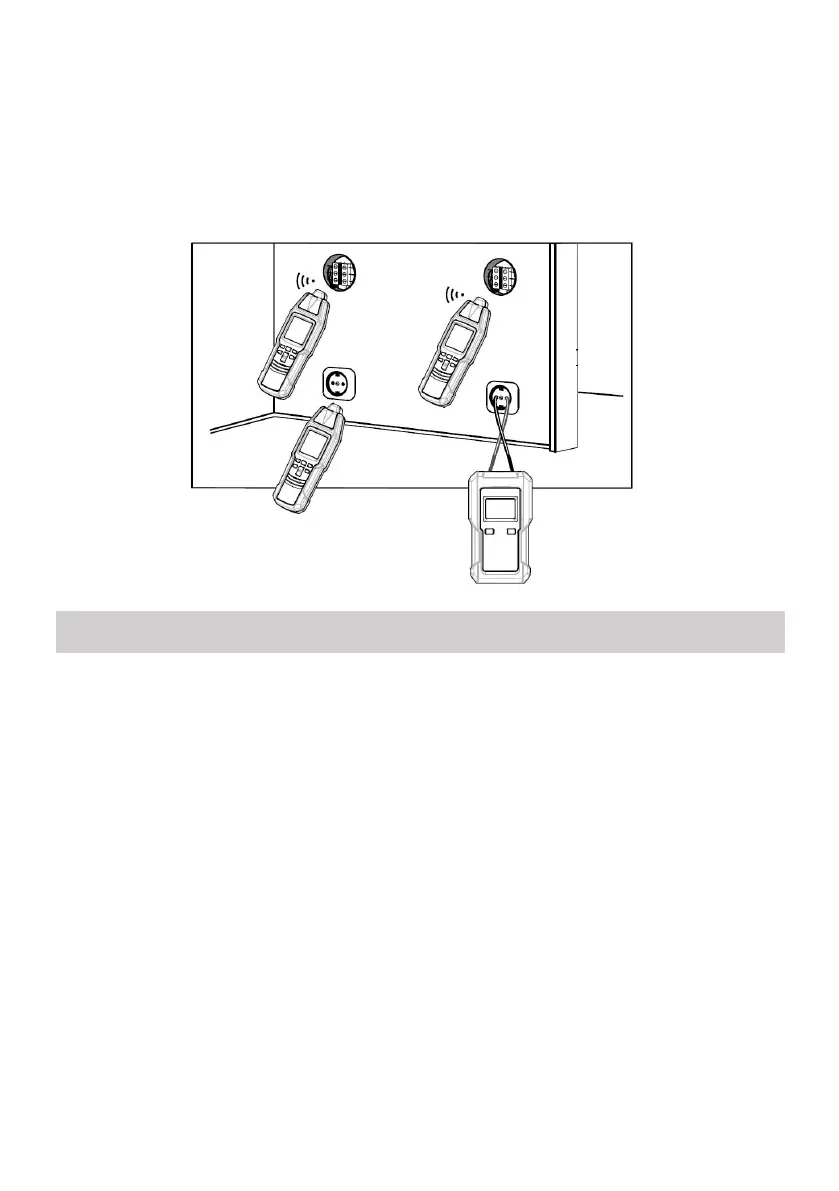

Figure 8
Tracing and locating of lines, sockets, switches and junctions in house
installations circuits ( one-pole application )
Requirements:
The circuit must be dead.
Neutral line and ground must be fully operational.
Connect the transmitter to phase and ground according to Figure 9.
Carry out this example as described in the application example.
In the one-pole application, lateral circuit branches can also be traced.
