VEVOR TS552 - Locating Line Interruptions

- 14 -

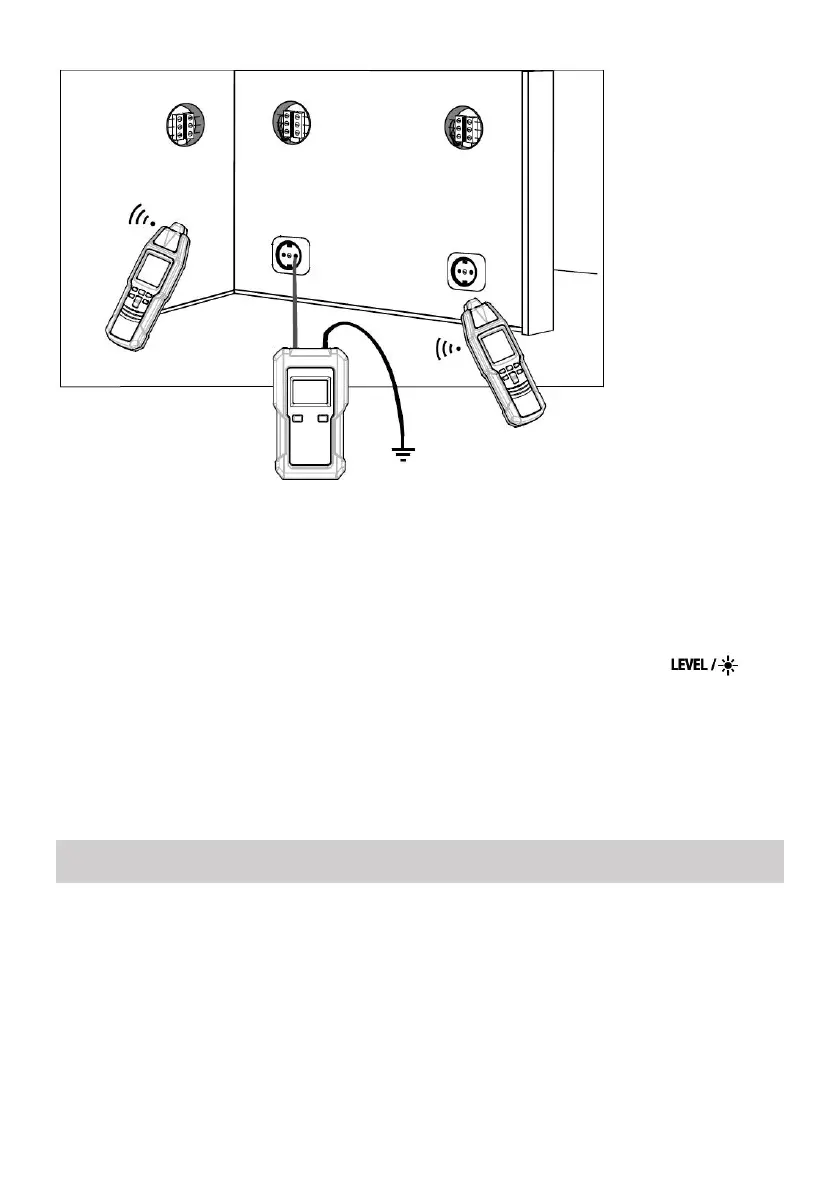

Figure 9
Note:
If the supply cable fed with the signal via the transmitter is located directly in
parallel to other conductors( e.g. cable duct ) or if these conductors are crossed,
the signal is also input into the other conductors.
Increasing the transmission level from level 1 to level 3 with the " "
button increases the detecting distance of the receiver by a factor of about 4.
Setup of the receiver: manual mode, minimal sensitivity. If necessary, adjust
the sensitivity of the receiver according to the actual condition during detection.
Max. tracing depth: about 2 meters.
Requirements:
The circuit must be dead.
All lines that are not required must be connected to the auxiliary ground in
accordance with Figure 10.
Connect the transmitter to one lead and to ground according to Figure 10.
Carry out this example as described in the application example.
Locating of line interruptions ( one-pole application )
