Requirements:
The line to be located must be separated from the equipotential
bonding. ( When you finish tracing water or heating pipes, remember
to restore the line's connection which you have disconnected. )

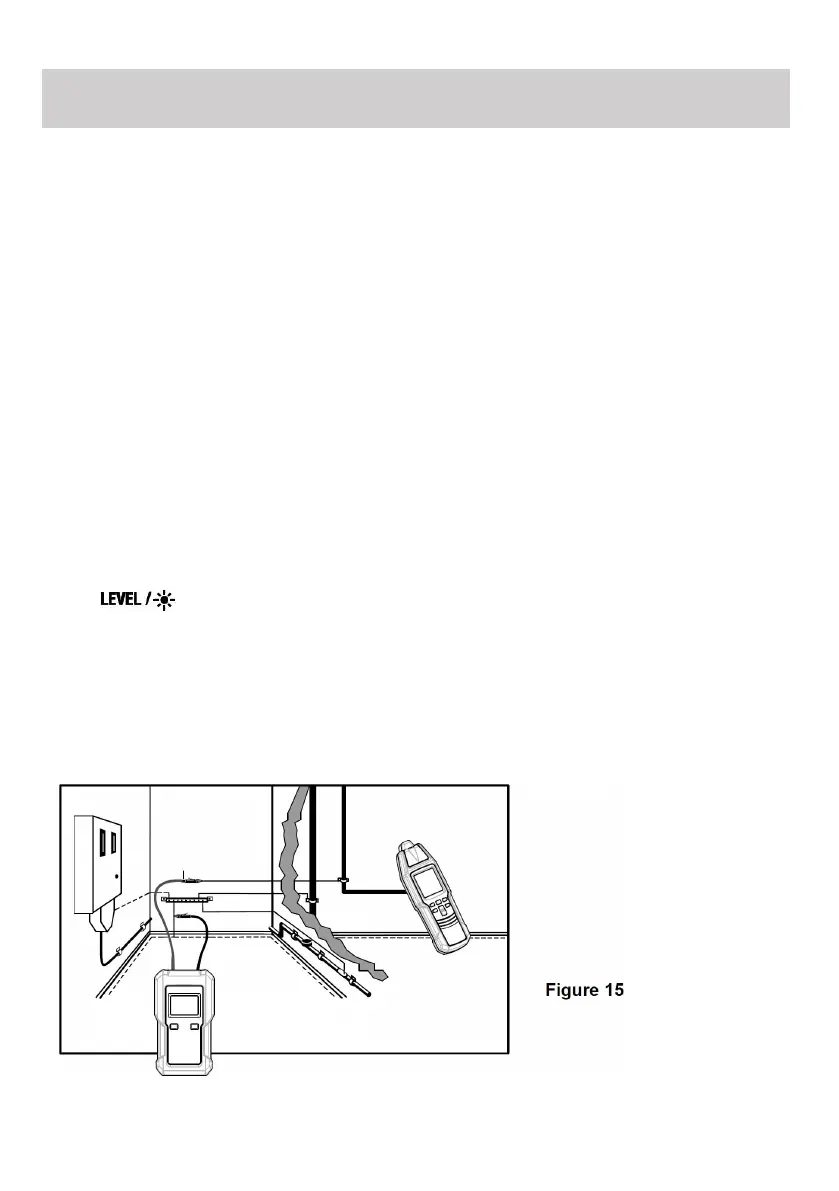

Connect the transmitter in accordance with Figure 15.
For safety reasons, the electrical system must not be live!
Connect the black terminal of the transmitter to the ground terminal of
a properly earthed socket, and connect the red terminal of the
transmitter to the conductor to be traced or located. Now the feed line
can be traced.
Note:
Increasing the transmission level from level 1 to level 3 with the
" " button increases the detecting distance of the receiver by
a factor of about 4.
Setup of the receiver: manual mode, minimal sensitivity. If necessary,
adjust the sensitivity of the receiver according to the actual condition
during detection.
Max. tracing depth: about 2 meters.
Tracing installed water and heating pipes ( one-pole application )
