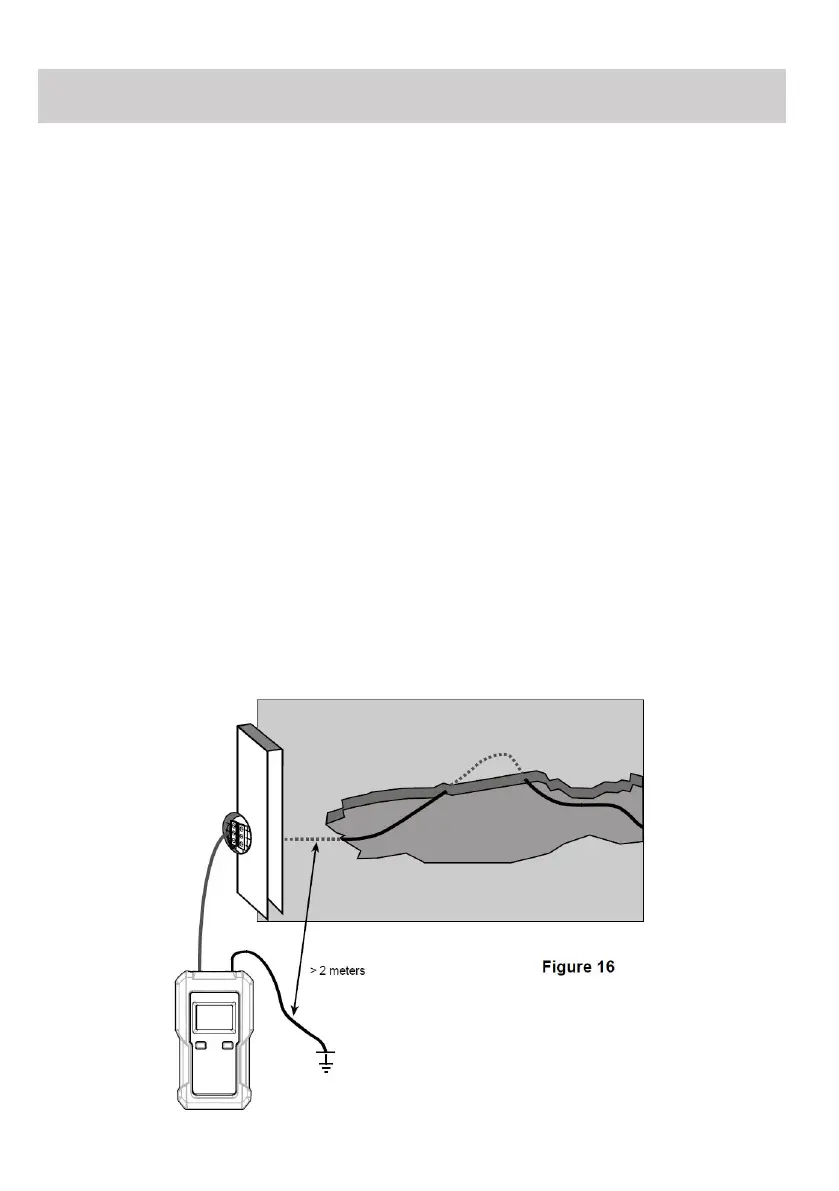

The connection is realized in compliance with Figure 16.
Warning: Ensure that the current circuit is not live.
Note: Make sure that the distance between the connection to the
ground and the conductor to be detected
is high. If the distance is too short, no definite assignment of the signal
received can be made to one
conductor. ( See Figure 16. )
The max. tracing depth is about 2 meters. The tracing depth strongly
depends on the soil characteristics and the instrument's settings.
Set the receiver to automatic mode. Now, search or trace the conductor
by means of the signal intensity displayed. When circling the receiver
slowly across the conductor to be searched, the displayed values
change considerably. The display of the maximum signal intensity is
performed directly via the conductor. The signal intensity level
decreases with increasing distance of the fed-in signal ( transmitter ).
Tracing conductors buried in the soil ( single-pole application )
